Laboratory Moisture analyzer

Laboratory Moisture analyzer

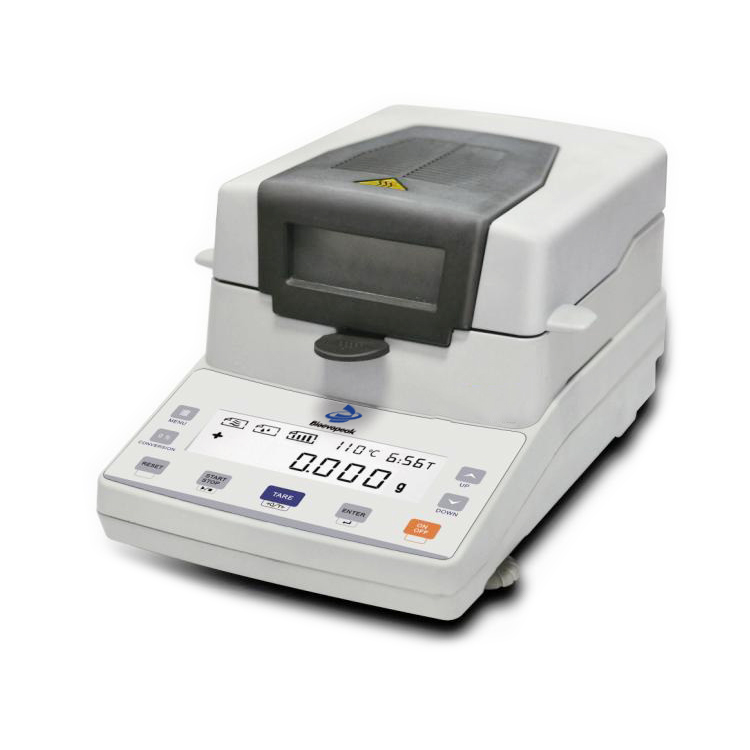

0.01g110g Moisture analyzer


Laboratory Moisture analyzer


1.Halogen lamp/HBM sensor

2.Aluminum shell/Stainless steel chamber

3.LCD(White back light with black font)

4.Temperature/Time set

5.The percentage of moisture content/dry residual

6.Store historical set

7.Option:Aluminum box/Printer/Grinder


       Model        MCA110-10 MCA110-5 MCA110-2 MCA110-1 MCA110-1A
      Capacity          110g
      Readability     0.01g 0.005g 0.002g 0.001g
      Operating Temp     5℃-35℃
      Display      LCD(White back light with black font) LCD HD Back Display
      Calibration       External Calibration
      Interface       RS232/RJ45/USB…
      Pan Size Ø90mm
      Packing Size     490x350x360mm
      Gross Weight        7.5kg
      Heating Source      Halogen Lamp-1 Halogen Lamp-2
      Temp.Sensor    PT100
      Temp.Range      40℃-199℃
      Temp.Step     1℃
      Moisture Range      0.00%-100.00%
      Moisture Readability  0.20% 0.10% 0.04% 0.01%
      Dry Range 100.00%-0.00%
      Dry Readability  0.20% 0.10% 0.04% 0.01%
      Temp Setting     40℃-199℃ By 1℃ Step
      Time Setting      1-99min By 10s
      Number Of Storage      15
      Heater     220V ±15% 50HZ/110V±15% 60HZ/400W
      Balance    Input:220V 50HZ/110V 60HZ  Output:9V
