Auto Hematology Analyzer, 5 Parts, HEMA-D6051Mini

  • Laser scatter + Chemical dye + Flow cytometry(FCM)
  • 27 parameters,3 histograms for WBC, RBC and PLT
  • Up to 60 tests per hour
  • Independent channel for Basophil measurement
  • 10.4 inches high resolution TFT touch screen
  • Large storage capacity: up to 50,000 records

Share the product

Description

DESCRIPTION

DESCRIPTION

  • Laser scatter + Chemical dye + Flow cytometry
  • 5-Part differentiation, 27 parameters, including 23 reportable parameters
  • Up to 60 tests per hour
  • Independent channel for Basophil measurement
  • Large storage capacity: up to 50,000 records
  • Support USB/LAN/bi-directional LIS
  • 7 types of languages are available
  • Low sample volume 15ul
  • Compact in size, high precision, good repeatability
10.4 inches high resolution TFT touch screen
Support USB/LAN/bi-directional LIS

SPECIFICATIONS

SPECIFICATIONS

Principles Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical staining method for WBC differention
Impedance method for RBC and PLT test
Cyanide free colorimetry for HGB test
Parameters 23 reportable parameters:
WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%,Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH,MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT
4 research parameters: ALY#, ALY%, LIC#, LIC%
3 histograms for WBC, RBC and PLT
Four 2D scattergrams for WBC differention
Sample Volume 20μL
Linearity Range WBC: 0.00-30Ox10^9/L, RBC: 0.00- 8.5x 10^12/L, HGB: 0- 250g/L, PLT: 0- 3000x 10^9/L, HCT: 0~67%
Repeatability WBC≤2.5%(4.0-15.0×10^9/L), RBC≤1.5%(3.5-6.0×10^12/L), HGB≤1.5%(110-180g/L), MCV≤1%(70-120fL) PLT≤6.0%(100-149×10^9/L)
PLT≤4.0%(150-500×10^9/L)
Sample mode Whole blood, capillary whole blood and pre-diluted modes
Consumables DIL-C: 20L
LYC-1: 500ml
LYC-2: 500ml
CLE-P: 50ml
Throughput Up to 60 tests per hour
Display 10.4 inches high resolution TFT touch screen
Printout External printer,compatible with multiply laser /inkjet printers, compatible with various formats and user-defined formats
Storage Up to 50,000 records
Interface 4 USB ports, 1 LAN port
Power requirement 100V-240V~, 50/60Hz, ≤200VA
Dimension 364mm(W)*498mm(H)*431mm(D)
Net weight 28kg

ACCESSORIES

ACCESSORIES

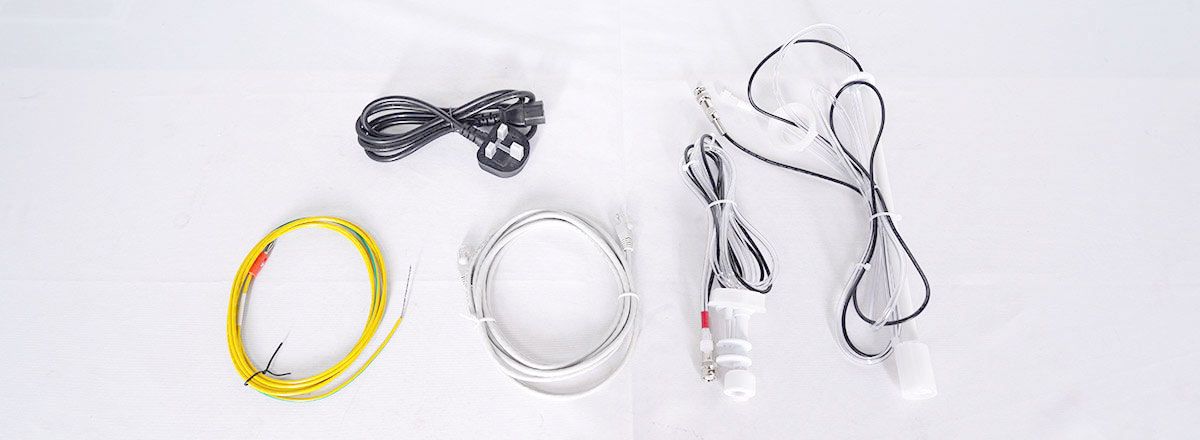

HEMA-D6051Mini accessories 01
