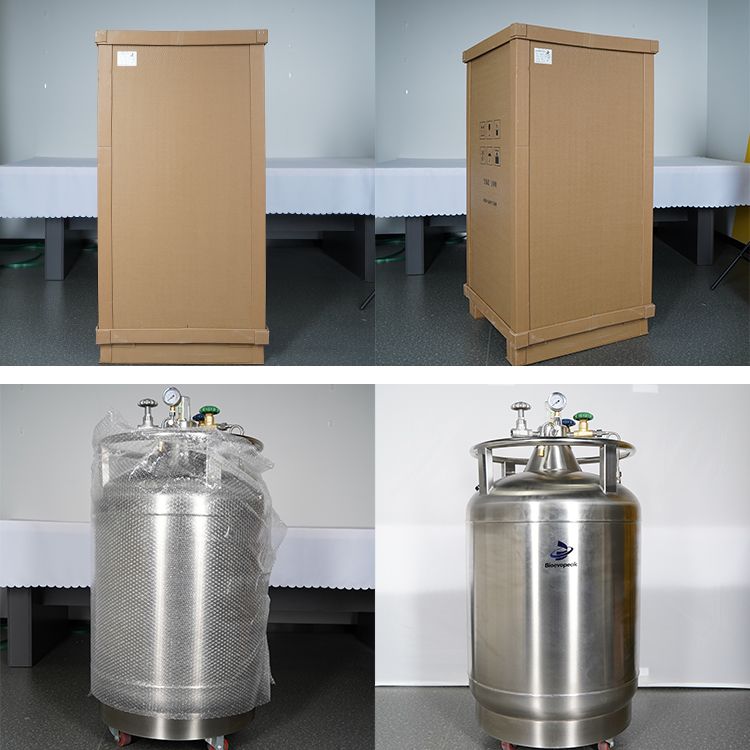

Liquid Nitrogen Filling Tank, LNS Series

  • LN2 Capacity:  5L; 15L; 30L; 50L
  • Neck Opening : 40mm

Share the product

Description

Product Overview

Liquid nitrogen filling tank series is mainly used for liquid nitrogen storage. It uses small amount of liquid nitrogen vaporizing to increase the pressure inside the tank, so that the tank can automatically discharge liquid nitrogen to other containers. The stainless steel structure design is suitable for most environment and reduces the rate of evaporation losses. All the models are equipped with pressure building valve, liquid valve, release valve and pressure gauge. All the models are equipped with 4 rollers at the bottom for easy to move. Mainly applicable to laboratory users and chemical users for liquid nitrogen storage and liquid nitrogen automatic supply.

Product Features

  1. Unique neck design, low evaporationloss rate;
  2. A protective operating ring;
  3. Safe structure;
  4. Stainless steel tank;
  5. With rollers for easy to move;

Product Advantages

  1. Level display is optional;
  2. Digital signal remote transmission;
  3. Regulator is optional for stable pressure;
  4. Solenoid valve is optional;
  5. Automatic filing system is optional.

Specifications

Model LNS-5 LNS-15 LNS-30 LNS-50
Performance
LN2 Capacity (L) 5 15 30 50
Neck Opening (mm) 40 40 40 40
Daily Evaporation Rate of Static Liquid Nitrogen (%) 3 2.5 2.5 2
Transfusion Volume (L/min)
Maximum Storage Capacity
Overall Height (mm) 510 750 879 991
Outer Diameter (mm) 329 404 454 509
Weight Empty (kg) 15 23 32 54
Standard Working Pressure (mPa) 0.05
Maximum Working Pressure (mPa) 0.09
Setting Pressure of The First Safety Valve (mPa) 0.099
Setting Pressure of The Second Safety Valve (mPa) 0.15
Pressure Gauge Indication Range (mPa) 0~0.25



Model LNS-100 LNS-150 LNS-200 LNS-240 LNS-300 LNS-500
Performance
LN2 Capacity (L) 100 150 200 240 300 500
Neck Opening (mm) 40 40 40 40 40 40
Daily Evaporation Rate of Static Liquid Nitrogen (%) 1.3 1.3 1.2 1.2 1.1 1.1
Transfusion Volume (L/min)
Maximum Storage Capacity
Overall Height (mm) 1185 1188 1265 1350 1459 1576
Outer Diameter (mm) 606 706 758 758 857 1008
Weight Empty (kg) 75 102 130 148 202 255
Standard Working Pressure (mPa) 0.05
Maximum Working Pressure (mPa) 0.09
Setting Pressure of The First Safety Valve (mPa) 0.099
Setting Pressure of The Second Safety Valve (mPa) 0.15
Pressure Gauge Indication Range (mPa) 0~0.25

Static evaporation rate and static holding time is the theoretical value. Actual evaporation rate and holding time will be affected by container usage, atmospheric conditions and manufacturing tolerances.

Series Configuration Guidelines

Conventional Series E Series K Series
Standard: Single-layer infusion hose (ZG-DN\10/1.5)

Optional: Float level gauge

Standard: Single-layer infusion hose (ZG-DN10/15)

Digital display level motor (LNS-100)

No data remote transmission function.

Standard: Single-layer infusion hose (ZG-DN10/1.5)

Digital display level meter (LNS-300) and Voltage stabilizing device;

With liquid level data remote transmission function;

Suitable for automatic replenishment system.

From 100 to 500 liters, E and K series can be selected, of which LNS-240 has no conventional series.
