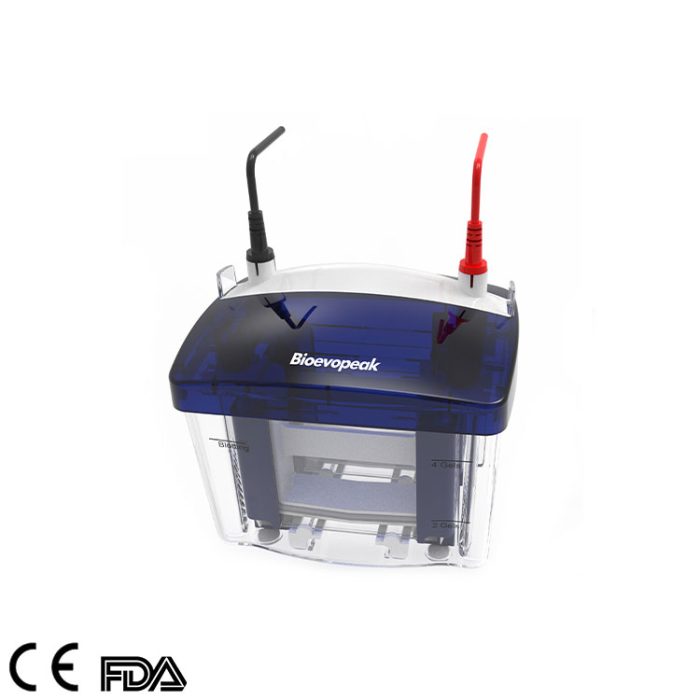

Mini Vertical Electrophoresis Cell, GEP-VEC-MPRO4

Share the product

Description

Features
◆Filler strip is fixed to glass place to avoid leakage of gel.
◆Gel-making kit ensures the accurate aligning.
◆Excellent leakproofness.
◆Special comb does not stop gel polymerization. Built-in kit isolates gel from air.
◆Thickness and well-marked comb is readable.
◆Equipped with multi-functional gel scraper.

Specifications

Quantity 1-4 piece(s)
Thickness 1.0mm: 10, 15 wells (standard), 0.75mm: 10 & 15 wells,1.5mm: 10 & 15 wells (optional)
Precast gel compatible with BIO-RAD mini-PROTEAN TGX
Glass plate dimension 100*83mm
Gel dimension 83*73mm
Comb specification 1.0mm: 10 and 15 wells; 0.75mm: 10 and 15wells; 1.5mm: 10 and 15 wells.
Dimension 180*130*160mm (L *W*H)
