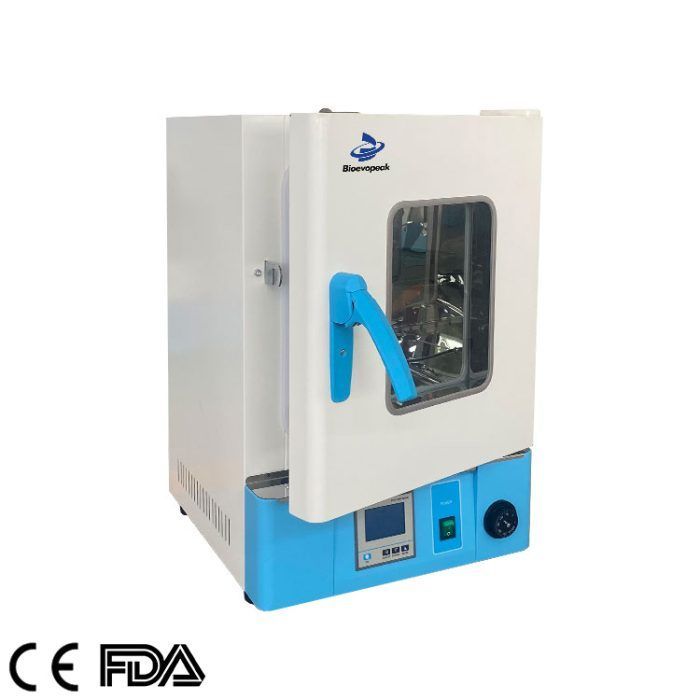

Natural Convection Drying Oven, DON-30-125 Series

  1. Temperature variation(℃): RT+10~300℃
  2. Load per rack (kg): 15/kg 2 for standard configuration

Share the product


Standard type:

  1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by electrostatic spraying process.
  2. The working roomis made of high-quality mirror-finished stainless steel, and the four corners are in arc transitions.The surface is treated by anti-corrosion process.The spacing of the partitions is adjustable. The quick detachable structure of the bottom heating cover is convenient for cleaning.
  3. The PID microcomputer intelligent temperature controller has functions such as precise timing of temperature control, over-temperature alarm, precise temperature control, and convenient reading.
  4. The box door with new structure has good heat insulation effect.There is a double-layer tempered glass observation window with a large viewing angle in the middle, equipped with a lock-type elastic adjustment door lock, and a high-temperature resistant silicone sealing strip to ensure good tightness and prevent heat loss.
  5. The heating power has two gears, which can meet the needs of users at high and low temperature.

Functional type:

In addition to the standard functions, it also has the following functions:

1.Large-screen LCD display.

2.The independent temperature limit system has the function of over-temperature interruption. When the main controller fails, it will alarm and cut off the output in time, which double protects the safety of the experiment.


Model DON-30 DON-45 DON-65 DON-125
Temperature variation(℃) RT+10~300℃
Temperature fluctuation (℃) ±1.0℃
Temperature resolution (℃) 0.1℃
Ambient temperature(℃) +5~40℃
Timing range 1-9999min
Load per rack (kg) 15/kg 2 for standard configuration
Consumption 800W 1000W 1500W 2500W
Volume (L) 30 45 65 125
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H) 310*310*310mm 350*350*350mm 400*360*450mm 500*450*550mm
External Size(W*D*H) 460*510*695mm 500*550*735mm 550*550*840mm 636*680*915mm
Package Size(W*D*H) 550*570*765mm 620*585*800mm 640*640*905mm 730*720*1000mm
Net/Gross Weight 38/51kg 41/54kg 42/59kg 57/71kg
