Home>Products>Blood Bank Refrigerator, Blood Bank Refrigerator>Single Door Blood Refrigerator, BR4-370

Single Door Blood Refrigerator, BR4-370

  1. Capacity:368L
  2. Cooling:Forced -air Cooling
  3. Defrost:Auto
  4. Refrigerant:R134a,CFC-Free
  5. Compressor brand/QTY:EMBRACO/1
  6. Sensor:NTC
  7. Temperature controller:Microprocessor
  8. Outer door/Type:1/Heating & Foam glass door

Share the product

Description

DESCRIPTION

DESCRIPTION

Purpose

  • Professional refrigerator to store blood, as well as medicines and bio products.
  • Suitable for blood banks, hospitals, CDCs.

Reliability and Key Features

  • Microprocessor controlled forced-air cooling with electrical heat compensation system.
  • Digital temperature display for upper and low sections in chamber with 0.1℃
  • Consistent cabinet temperature 2-6℃.
  • High-tech integrated sensors to display and control temperature.
  • Auto-defrost to remove moisture on cooling surface.
  • Large digital display for ease of observation.

Safety

  • Build-in backup battery to display temperature and to operate audible and visual alarm systems for up to 72 hours without ac power.
  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
  • Five alarm conditions: High/low temperature, power failure, voltage abnormal, door ajar, backup battery.
  • Standard with laser printer.
  • Standard with acrylic inner small door, for less affection on other room when one door open.

Ergonomic Design

  • Safety lock to prevent unauthorized access.
  • Storage space designed for easy sorting of a variety of blood products.
  • Caster design and interior light.

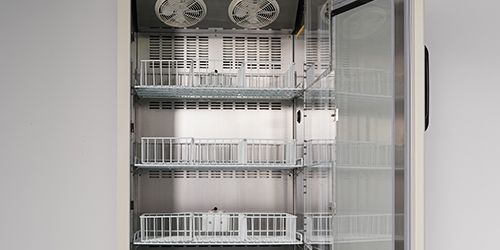

acrylic inner small door

Standard with acrylic inner small door, for less affection on other room when one door open.

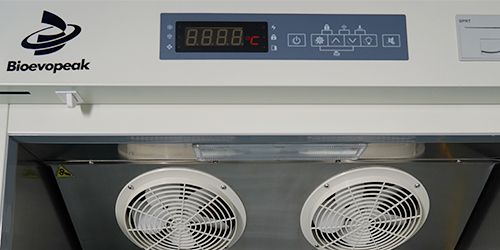

Large digital display for ease of observation.

Caster

Caster design and interior light.

SPECIFICATIONS

SPECIFICATIONS

Model BR4-370
Specifications Shelf/drawer Shelves/4
Cooling Forced -air Cooling
Defrost Auto
Refrigerant R134a
Power consumption(kWh/24h) 4.28
Noise(db) 51.2 dB(A)
Ambient temperature(℃) 10~32℃
Temperature range(℃) 4±1℃
Cooling system Compressor brand/QTY EMBRACO/1
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 325
Current(A) 2.2A
Material Inside material 304 Stainless steel
Outside material Cold-rolled steel coated with anti-bacteria powder
Insulation PURF
Size Capacity(L/cu.ft) 368/12.98
Bloodbags (450ml) 200
NT./GT.(kg) 128/135
Exterior size(W×D×H)(mm) 785×565×1920
Interior size(W×D×H)(mm) 685×429×1380
Package size(W×D×H)(mm) 890×650×2100
CBM 1.21
20GP/40GP/40HQ 21/44/44
Alarm High/low temperature Y
Power off Y
Temperature controller malfunction Y
Backup battery malfunction Y
Ambient temperature 10~32℃
Power failure backup system(alarm) 8h
Accessories Caster Y
Outer door/Type 1/Heating & Foam glass door
Inner door
Test hole 1/25MM
Thermal Printer Y
Light LED
Temperature recorder Optional
