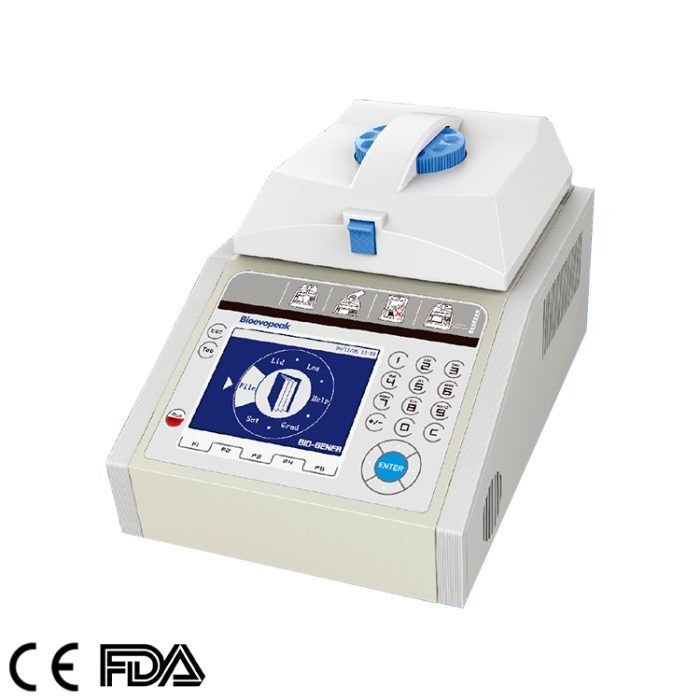

Thermal Cycler, PCR-E Series

  • Long service life Peltier heating units
  • Stepless adjustable hot lid
  • High-sealing reaction zone

Share the product



Thermal cycler uses long service life peltier and cycle times is more than 1000,000. The performance of this series is stable,easily operated,very economic.

  • Long service life Peltier heating units
  • Highly performance universal power supply
  • Large 5.7 inch high-definition LCD display;
  • Graphical user interface in English and Chinese;
  • Power-down data protection,
  • Metal shell, solid, practical, beautiful and generous;
  • Stepless adjustable hot lid;
  • Lid can be positioned at any angle;
  • High-sealing reaction zone,to ensure stable and reliable test.


Model PCR-9612E PCR-9622E PCR-9632E
Capacity 96×0.2ml 96×0.2ml+77×0.5ml 60×0.5ml
Temperature Range 0-99℃
Heating Rate 4.5℃/s
Cooling Rate 4℃/s
Uniformity ≤±0.3℃
Accuracy ≤±0.2℃
Display Resolution 0.1℃
Temperature Control Block\Tube
Ramping Rate Adjustable 0.1-4.5℃
Gradient Uniformity ≤±0.3℃
Gradient Accuracy ≤±0.2℃
Gradient Temp.Range 30-99.9℃
Gradient Spread 1-30℃
Hot Lid Temperature 30-110℃
Hot Lid Height Adjustable  Stepless Adjustable
Number of Programs 200
Number of Segment 9
Max. No. of Step 9
Max. No. of Cycle 99
Time Increment/Decrement 1 Sec – 9 Min59 Sec
Temp. Increment/Decrement 0.1-9.9℃
Pause Function Yes
Auto Data Protection Yes
Graphical Display Yes
Hold at 4℃ Forever
Touchdown Function Yes
Long PCR Function Yes
Language English
LCD 5.7 inch,320×240 pels
Communication USB2.0 , WIFI
Dimensions (L×W×H) 392mm×262mm×252mm
Weight 10Kg
Electricity 85-264VAC, 50-60Hz, 600 W
