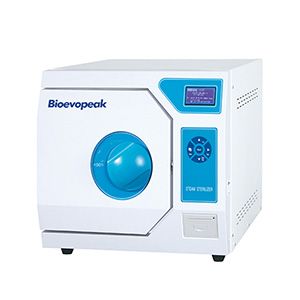

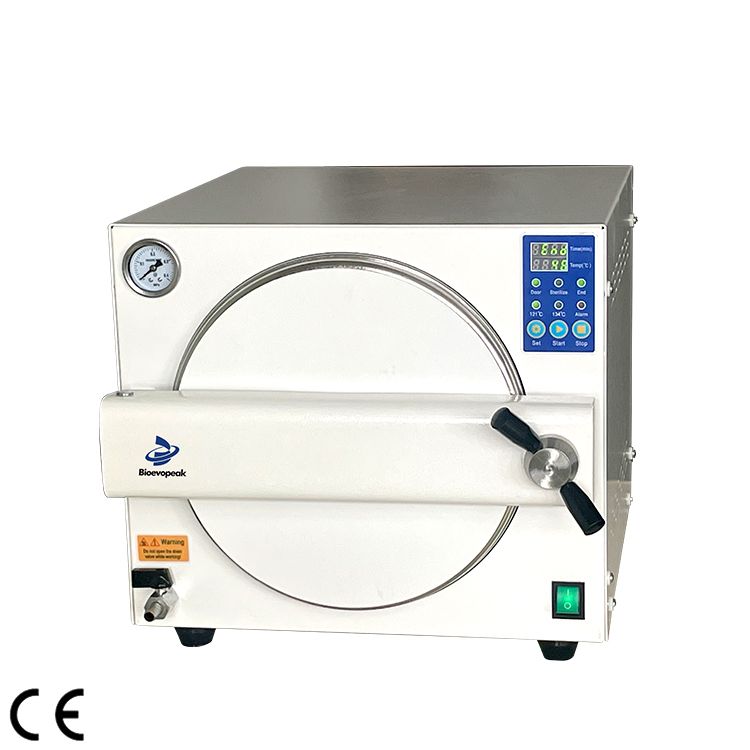

Autoclave, Class N, Benchtop Type, STB-NA Series

  1. Open type top water tank
  2. Chamber volume: 8L, 12L, 18L, 23L
  3. Sterilization temperature: 134℃/121℃
  4. Built-in steam generator
  5. Microcomputer controls the automatic cycle

Share the product

Description

  • Quality stainless steel inner tank, sealed cover
  • The microcomputer controls the automatic cycle, 121℃ and 134℃can be set
  • Safety interlocking device
  • Touch buttons
  • Equipped with standard test interface
  • Open type top water tank
  • European CLASS N standard.
  • With automatic protection function: over temperature protection, over pressure protection, low water level protection, anti dry burning
  • Buzzer reminder after sterilization, automatic stop.
  • Automatic discharge of cold air, automatic steam exhaust after sterilization.
  • Built-in steam generator to provide saturated steam quickly
  • Optional built-in printer
  • Optional USB function

Specifications

Model STB-N8A STB-N12A STB-N18A STB-N23A
Volume 8L 12L 18L 23L
Power 1.5kw 1.8kw 2.2kw 2.2kw
Voltage 110V/220V,60HZ/50HZ
Design pressure 0.25Mpa
Design temperature 139℃
Rated working pressure 0.22Mpa
Temp accuracy ±1℃
Rated working temperature 134℃
Chamber volume Ø170×320 Ø200×355 Ø250×370 Ø250×452
Outer dimension 445×580×400 445×580×400 480×590×450 480×690×450
