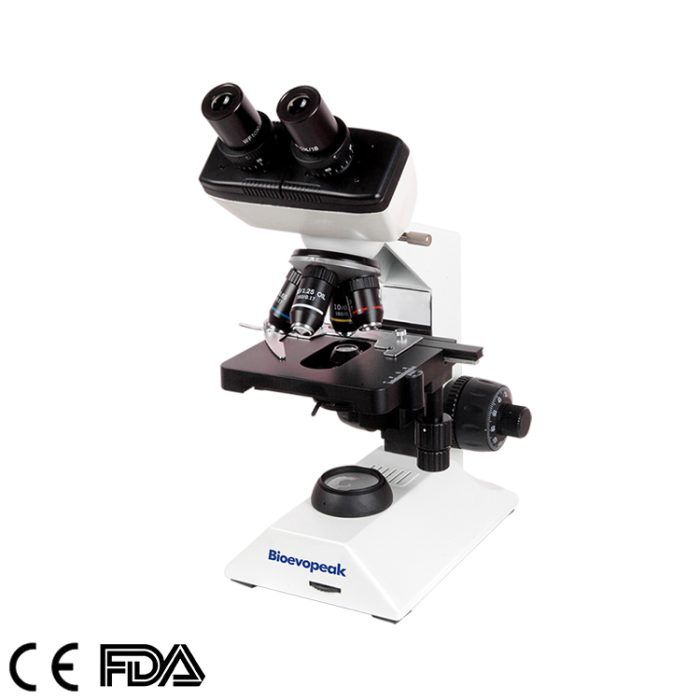

Biological Microscope, MSC-B102(Sliding)

  1. Viewing Head: Sliding Binocular Head inclined at 45°interpupillary (55-75mm)
  2. Eyepiece: Wide Field eyepiece WF10X18mm
  3. Objective: Achromatic Objective 4X,10X,40X,100X
  4. Illumination: LED Illumination, Brightness Adjustable

Share the product

Description

LCD display system
7-inch high-definition imaging equipment, used in combination with a microscope, with the observation effect of the eye at each multiple, display mode: 16:9 / 4:3; screen resolution: 1024 * 600.

Digital display storage system
10-inch display screen,With 8.0M HDMI camera, the output resolution of HDMI is 720P@ 60fps; the photo resolution is 3840 * 2160; remote control is adopted.

Specifications

Model MSC-B102(Sliding)
Viewing Head Sliding Binocular Head inclined at 45°interpupillary (55-75mm)
Eyepiece Wide Field eyepiece WF10X18mm
Nosepiece Quadruple Nosepiece
Objective Achromatic Objective 4X,10X,40X,100X
Stage Double Layers Mechanical Stage 115X125mm/ 70X30mm
Condense Abbe NA1.25 with Iris Diaphragm & Filter
Focusing System Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination LED Illumination, Brightness Adjustable
Halogen Lamp 100V-240V/ 6V20W
Plan-concave Mirror
Package Styrofoam
Carton
Wooden Case
