Home>Products>Microscopes>Biological Microscope>Biological Microscope, MSC-B203

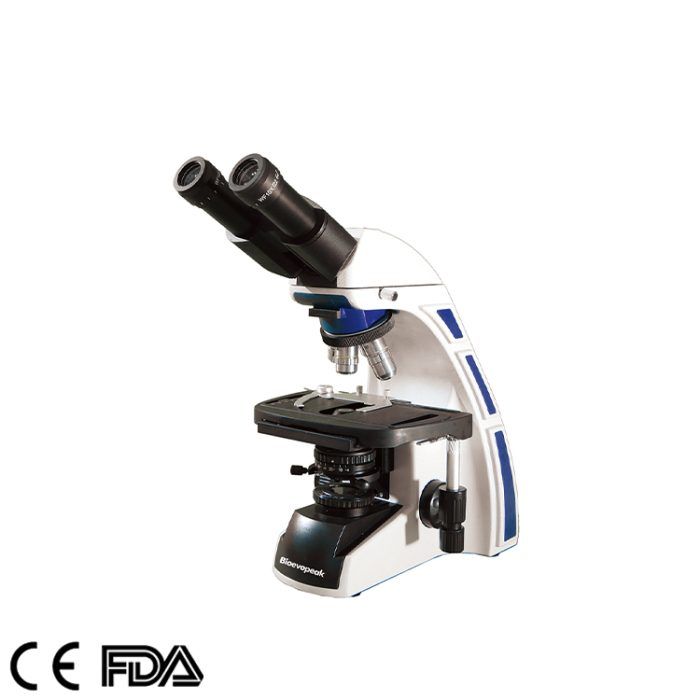

Biological Microscope, MSC-B203

  1. Optical System: Infinite Optical System
  2. Illumination: LED Illumination, Brightness Adjustable

Share the product

Description

Specifications

Model MSC-B203
Optical System Infinite Optical System
Viewing Head Seidentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm
Eyepiece WF10×22mm  Wide Field Eyepiece WF10×22mm; *WF16×; *WF20×
Objective Infinite plan Achromatic Objective: 4×,10×,*20×,40×,100×

*Flour semi-apo abjective:4×,10×,*20×,40×,100×

*Infinite Plan Phase Objective: Ph10x、20x、40x、100x

Nosepiece Quadruple Nosepiece/*Quintuple Nosepiece
Stage Double Layers Mechanical Stage 210X150mm/ 75X50mm
Condense Abbe Condenser NA1.25 with Iris Diaphragm & Filter
Focusing System Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation,

Fine Stroke 0.2mm per Rotation, Moving Range 24mm

Illumination LED Illumination, Brightness Adjustable
*Optional Phase Contrast Kit; Dark Field Attachment;Fluorescent Attachment
*Optional configuration
