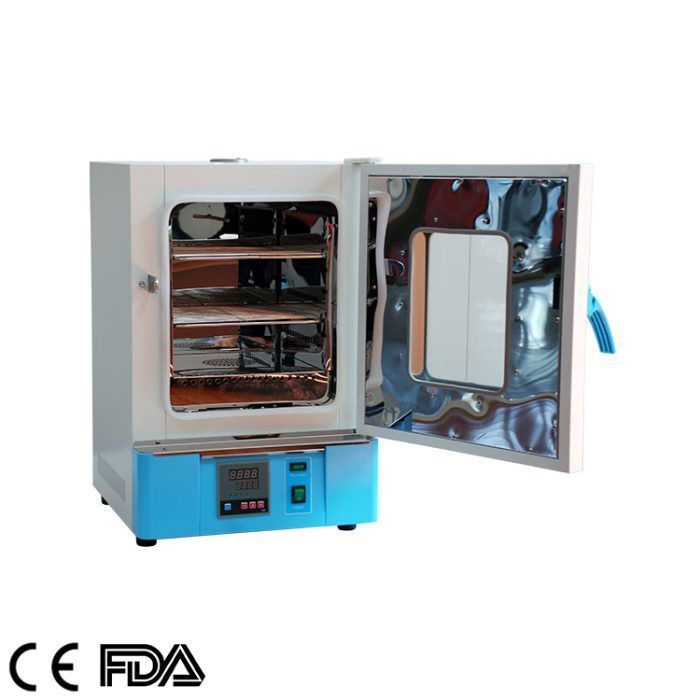

Forced Air Drying Oven, DOF-30E/ 45E/ 65E/ 125E

  1. Volume:30L, 45L, 65L, 125L,
  2. Temperature control range(℃): RT+10-300℃
  3. Temperature fluctuation(℃): ±1.0℃
  4. Load per rack: 15/kg (2 for standard configuration)

Share the product

Description

DESCRIPTION

DESCRIPTION

Overview of use:

DOF series blast drying oven has the characteristics of the new model, advanced technology, accurate temperature control, stable performance, easy maintenance, convenient operation, and so on. It is suitable for drying, baking, wax melting, and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes, medical and health institutions, etc.

Product characteristics:

1. Turbine centrifugal fan blades, unique bottom blast, and bottom heater are reasonably coordinated, with vertical double air ducts and vertical hot air circulation, so that the temperature distribution in the working room is more uniform.

2. Low noise blower is adopted.

3. The fan has the speed regulation function, which is divided into three gears: 1, 2, 3. The gear is adjusted according to the user’s requirements for heating items. It is recommended to use high-speed gear so that the uniformity is relatively high

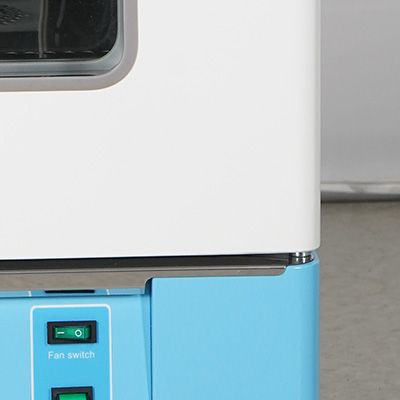

Novel vertical design, the box shell is formed by high-quality cold-rolled steel plate, the surface is treated by electrostatic spraying process, the appearance is beautiful and generous, anti-corrosion and durable.

drying oven dof-30e

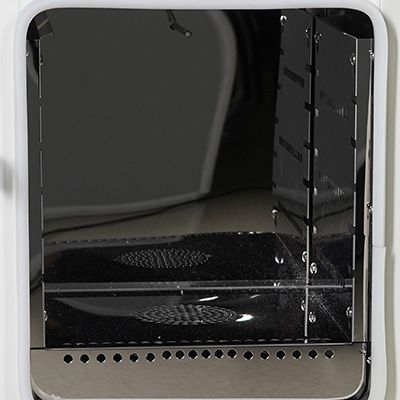

The working chamber is formed by high-quality mirror stainless steel, and the four corners are in semi-circular arc transition. The surface is treated with anti-corrosion technology. The spacing of the partitions is adjustable. The air duct side plate and the bottom heating cover are quick-detachable structures for easy cleaning

drying oven dof-30e

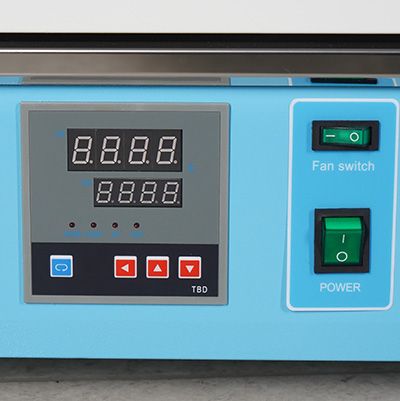

PID microcomputer intelligent temperature controller has the characteristics of timing, over-temperature alarm, accurate temperature control, and convenient reading.

drying oven dof-30e

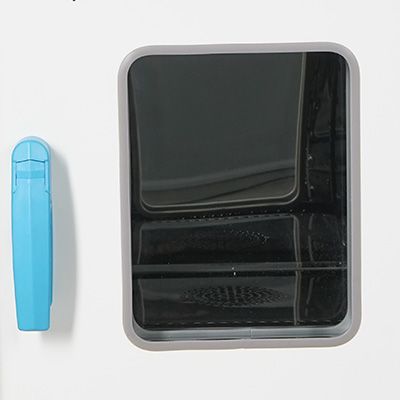

The box door with a new structure has a good heat insulation effect, and there is a double-layer toughened glass observation window with a large viewing angle in the middle. It also has a lock-type looseness adjustment door lock and a high-temperature resistant silicone sealing strip to ensure good sealing and prevent heat loss.

SPECIFICATIONS

SPECIFICATIONS

Model DOF-30E DOF-45E DOF-65E DOF-125E
Voltage(V) 220V/50HZ
Temperature control range(℃) RT+10-300℃
Temperature fluctuation(℃) ±1.0℃
Temperature resolution (℃) 0.1℃
Ambient temperature (℃) +5-40℃
Heating power (kw) 0.8 1.2 1.6 2.3
Internal dimensions W × D × H (mm) 310×310×310 350×350×350 400×360×450 500×450×550
External Dimensions W × D × H (mm) 460×510×695 500×550×735 550×550×840 636×680×915
Packaging dimensions W×D×H(mm) 550×570×765 620×585×800 640×640×905 730×720×1000
Load per rack 15/kg (2 for standard configuration)
Net weight / gross weight 39/51 42/56 47/61 56/71
Timing range 1-9999min

ACCESSORIES

ACCESSORIES

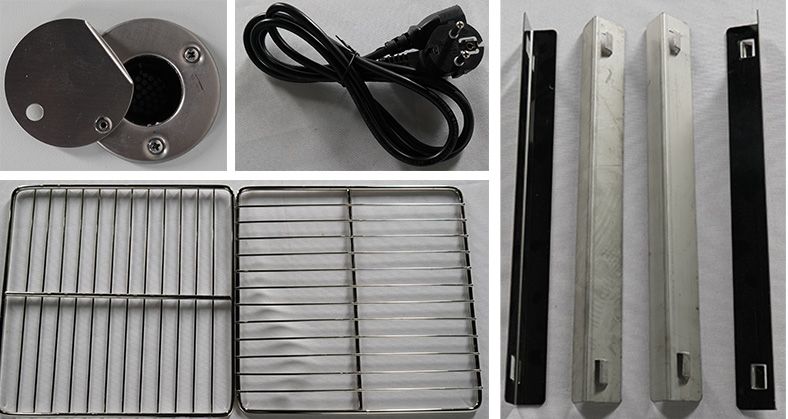

drying-oven-accessories

PACKING

PACKING

drying oven packaging

CERTIFICATE

CERTIFICATE

drying oven
