Forced Air Drying Oven, Horizontal Type, DOF-H55-A

  1. Volume: 54L
  2. Temp.Range(℃): RT+10~200
  3. Temp. Fluctuation:±1℃
  4. Temp. Uniformity:±2.5℃%

Share the product

Description

DESCRIPTION

DESCRIPTION

1. Horizontal and vertical forced air type, good temperature uniformity.

2. Microprocessor controller(with temperature correction and timing function), accurate and reliable.

3. Microprocessor controller with LCD display make temperature accurate and reliable.

4. Working chamber adopts high quality stainless steel and round angle structure, easy to clean.

5. Silicon sealing ring for reliable sealing.

6. Leakage protector

7. Anti-hot handle.

8. Equipped with spare temperature control which ensures the product work normally even the main temperature control failed.

Optional Accessories:

Multi-segment programmable control

Built-in Printer

RS485 interface.

forced-air-drying-oven

1. Equipped with leakage protection
2. Equipped with spare temperature control which ensures the product work normally even the main temp.control failed

forced-air-drying-oven

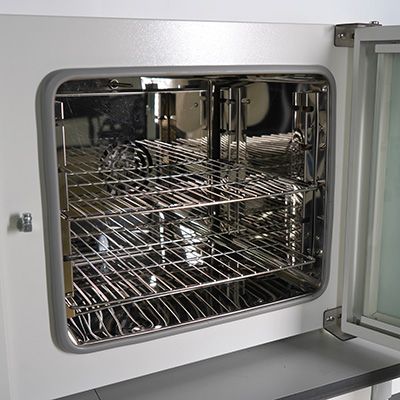

1. High quality stainless steel chamber, removable shelf,
easy-to-clean
2. Silicon sealing ring for reliable sealing

forced-air-drying-oven

1. Microprocessor controller(with temperature correction
and timing function), accurate and reliable.
2. Large LCD screen display.

forced-air-drying-oven

Anti-hot handle

SPECIFICATIONS

SPECIFICATIONS

Model DOF-H55-A
Cycle Mode Forced air convection
Volume 54L
Temp. Range RT+10~200℃
Temp. Resolution 0.1℃
Temp. Fluctuation ±1℃
Temp. Uniformity ±2.5%
Timing Setting 0~9999mins(with timing wait function)
Shelves 2pcs/adjustable, totally can load 5pcs
Consumption 600W
Power Supply AC110/220V±10%, 50/60Hz
Internal Size(W*D*H) 420*370*350mm
External Size(W*D*H) 710*560*420mm
Package Size(W*D*H) 820*660*690mm
Net/Gross Weight 35/43kg
