Fully-auto Biochemistry Analyzer, BA-A-120

  • 120 Tests/Hour, Double Reagents
  • 80 reagent positions, 40 sample positions
  • 50 reaction cuvettes

Share the product

Description

  • Constant 120 test / hour with double reagent
  • 80 reagent positions
  • Automatic liquid level sensing, anti-collision protection.
  • Integrated full closed optical system, multi wavelength simultaneous detection.
  • New amorphous optical plastics reaction cups, perfect transmittance.
  • Maintenance free semiconductor solid state refrigeration
  • Friendly surface and easy to operation
Chemistry Analyzer

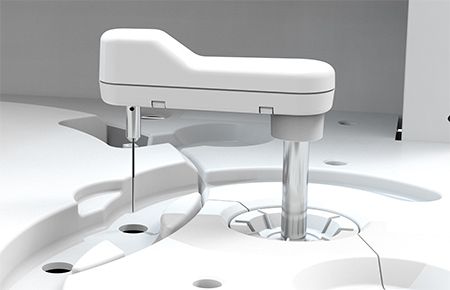

Multifunctional precision sampling probe

  • External & internal mirror polish, external & internal probe washing
  • Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals
  • Collision protection, automatic probe depth adjusting
Fully-auto chemistry analyzer

Excellent mixer design

  • Teflon coating mixer. No water dropping(reducing carry-over)
  • Excellent mixing effect with standard mixing prosedure
Chemistry Analyzer

High precision ceramic syringe

  • Permanent ceramicpiston
  • Accurate dispensing as low as 0.1µL
Chemistry Analyzer

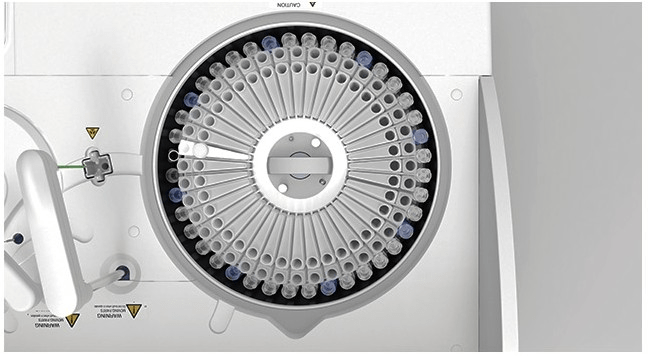

Reagent tray & Sample tray;

  • 80 reagent positions,40 sample positions
  • Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃
  • Bar code reader(optional)
Fully-auto chemistry analyzer

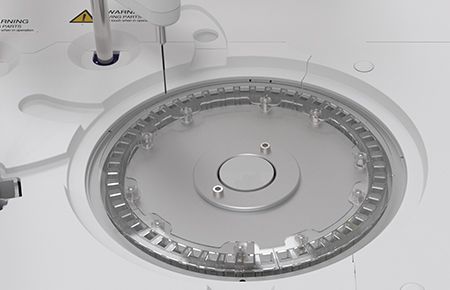

Reaction tray

  • 50 reaction cuvettes
  • Reaction volume as low as 150μL
  • Stable & accurate temperature (37±0.1℃)for reaction
Chemistry Analyzer

Advanced operating system

  • User friendly software interface simple, easy-to-operation
  • Sample automatic dilution(decrease, increase, normal)
  • Reaction result automatic checking and warning, calibaration result automatic checking, warning alarm log
  • Linear & nonlinear calibration, Multi-points calibration up to 8 points
  • Quality control apply to westgard, L-T plot, cumulative

Specifications

General information
Machine type Random access, open reagent & locked reagent (optional)
Test speed Constant 120 tests/hour (Mono reagent or double reagent)
Test principle Colorimetric method, turbidimetry
Test method 1 point end, 2 point end, Fixed-Time, Kinetics
Calibration type Linear & nonlinear
Sample unit
Sample tray 40 sample positions
Sample tube Micro cup & test tube & blood collection tube can be used. (Φ 12 -13 )mm *(25-100 )mm
Sample volume 20-300uL step by 0.1uL
Sample probe Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Sample barcode Sample barcode reader (optional)
Reagent unit
Reagent tray 80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2°C-14°C, open system, could accept any reagent
Reagent volume 20-300uL, step by luL
Reagent needle Liquid surface detection, timely tracking for liquid volume. Collision avoidance
Regent barcode Regent barcode reader (optional)
Reaction unit
Reaction tray 50 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.
Reaction volume 150uL-330uL
Reaction time 10 minutes
Temperature Peltier pad incubation system, reaction temperature (37°C ±0.1 °C)
Mixing system
Mixer paddle-type mixing, effective reducing of carry-over
Optical system
Light source Halogen lamp
Wavelength 340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm;700nm(4 more options)
Absorbance range 0-4.0 Abs
Resolution 0.0001 Abs
Operating system
Operation system Windows XP, Windows 7, Windows 8, Windows 10
Data processing Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory, cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management.
Report printing 6 formats optional, surpport custom pattern
interface TCP/IP network interface
Working conditions
Power supply AC 110/220V ± 10%, 50/60 Hz, 650W
Water consumption 6L/hour(maximum)
Dimension 750mm*550mm *490mm(L*W*H)
Weight 70kg
