Home>Products>Liquid Nitrogen Tank>Static Storage Liquid Nitrogen Tank, LNC-S Series

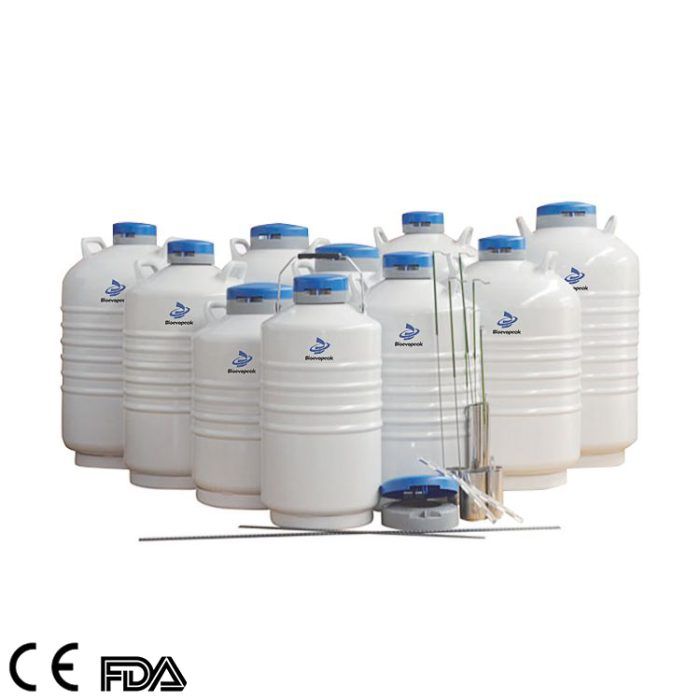

Static Storage Liquid Nitrogen Tank, LNC-S Series

  • LN2 Capacity: 10L; 13L; 15L; 20L; 25L; 31.5L
  • Neck Opening:  50mm; 80mm; 125mm

Share the product

Description

Product Overview

Static storage series is an economical small liquid nitrogen tank for laboratory use. It is specially designed for biological samples that need long-term static storage. It has two types of products: large capacity and super-long storage period. This series is made of high s1rength and light weight aluminium alloy with multi-layer and super-strong insulation layer. It realizes the safety, tightness and efficiency of the product, and has a variety of accessories to choose from.

Product Features

  1. High strength, light weight and small size aluminum structure;
  2. Equipped with belt;
  3. Ultra low evaporation loss;
  4. Large straw capacity;
  5. Vials cane Is optional;
  6. Lockable lid is optional to prevent unauthorized open;
  7. Level monitoring system is optional;
  8. Roller base is optional;
  9. Liquid nitrogen pump is optional;

Specifications

Model LNC-S10-80 LNC-S10-125 LNC-S13-50 LNC-S15-50 LNC-S20-50 LNC-S25-50 LNC-S30-50
Performance
LN2 Capacity (L) 10 10 13 15 20 25 31.5
Weight Empty (kg) 6.2 6.3 6.3 8.5 9.5 10.7 12.9
Neck Opening (mm) 80 125 50 50 50 50 50
Outer Diameter (mm) 300 300 310 394 394 394 462
Overall Height (mm) 557 554 623 591 672 700 705
Static Evaporation Rate (L/day) 0.21 0.43 0.12 0.11 0.12 0.14 0.12
Static Holding Time (day) 48 24 109 134 168 180 254
Maximum Storage Capacity
Canister Diameter (mm) 63 97 38 38 38 38 38
Canister Height (mm) 120 120 276 120 120/276 120/276 120/276
Number of Canisters (ea) 6 1 6 6 6 6 6
Straws Capacity (120 mm canister) 0.5 mL (ea) 2244 854 792 792 792 792
0.25 mL (ea) 5022 1940 1788 1788 1788 1788
Straws Capacity (276 mm canister) 0.5 mL (ea) 1284 1284 1284 1284
0.25 mL (ea) 2832 2832 2832 2832
Optional Accessories
Lockable Lid P P P P P P P
PU Bag P P P P P P
Level Monitor P P P P P P P
Roller Base P



Model LNC-S30-80 LNC-S30-125 LNC-S35-50 LNC-S35-80 LNC-S35-125 LNC-S47-127 LNC-S50-125
Performance
LN2 Capacity (L) 31.5 31.5 35.5 335.5 35.5 47 50
Weight Empty (kg) 13 13 14.2 14.5 14.6 18.2 17.3
Neck Opening (mm) 80 125 50 80 125 127 125
Outer Diameter (mm) 462 462 462 462 462 508 462
Overall Height (mm) 709 704 749 753 748 718 818
Static Evaporation Rate (L/day) 0.21 0.35 0.12 0.22 0.37 0.36 0.45
Static Holding Time (day) 147 90 286 159 97 130 110
Maximum Storage Capacity
Canister Diameter (mm) 63 97 38 63 97 104 97
Canister Height (mm) 120/276 120 120/276 120/276 120/276 120/276 120/276
Number of Canisters (ea) 6 6 6 6 6 6 6
Straws Capacity (120 mm canister) 0.5 mL (ea) 2244 5124 792 2244 5124 6714 5124
0.25 mL (ea) 5022 11640 1788 5022 11640 14070 11640
Straws Capacity (276 mm canister) 0.5 mL (ea) 3624 1284 3624 9048 10704 9048
0.25 mL (ea) 8460 2832 8460 20760 23604 20760
Optional Accessories
Lockable Lid P P P P P P P
PU Bag P P P P P P
Level Monitor P P P P P P P
Roller Base P P P P P P P



Vials Cane

Vials cane also can be matched with static storage series tanks to store 0.5ML-5ML vials.

Vials Cane Specification

Canister Height 120 mm, Diameter 38 mm (50mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 4 3 12
1.5 mL 4 3 12
2 mL 4 3 12
3 mL 4 3 12
5 mL 4 1 4



Canister Height 120 mm, Diameter 63 mm (80 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 16 3 48
1.5 mL 16 3 48
2 mL 16 3 48
3 mL 16 3 48
5 mL 16 1 16



Canister Height 120 mm, Diameter 72 mm (127 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 21 3 63
1.5 mL 21 3 63
2 mL 21 3 63
3 mL 21 3 63
5 mL 21 1 21



Canister Height 120 mm, Diameter 97 mm (125 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL
1.5 mL 40 3 120
2 mL 40 3 120
3 mL 40 3 120
5 mL 40 1 40



Canister Height 120 mm, Diameter 104 mm (127 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL
1.5 mL 46 3 138
2 mL 46 3 138
3 mL 46 3 138
5 mL 46 1 46



Canister Height 276 mm, Diameter 38 mm (50 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 4 6 24
1.5 mL 4 6 24
2 mL 4 6 24
3 mL 4 6 24
5 mL 4 3 12



Canister Height 276 mm, Diameter 63 mm (80 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 16 6 96
1.5 mL 16 6 96
2 mL 16 6 96
3 mL 16 6 96
5 mL 16 3 48



Canister Height 276 mm, Diameter 72 mm (127 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL 21 6 126
1.5 mL 21 6 126
2 mL 21 6 126
3 mL 21 6 126
5 mL 21 3 63



Canister Height 276 mm, Diameter 97 mm (125 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL
1.5 mL 40 6 240
2 mL 40 6 240
3 mL 40 6 240
5 mL 40 3 120



Canister Height 276 mm, Diameter 104 mm (127 mm neck)
Vials Cares/Canister Vials/Cane Vials/Canister
0.5 mL
1.5 mL 46 6 276
2 mL 46 6 276
3 mL 46 6 276
5 mL 46 3 138
