- Gas needle can be opened and closed independently
- Lifting seat can be adjusted steplessly with one hand

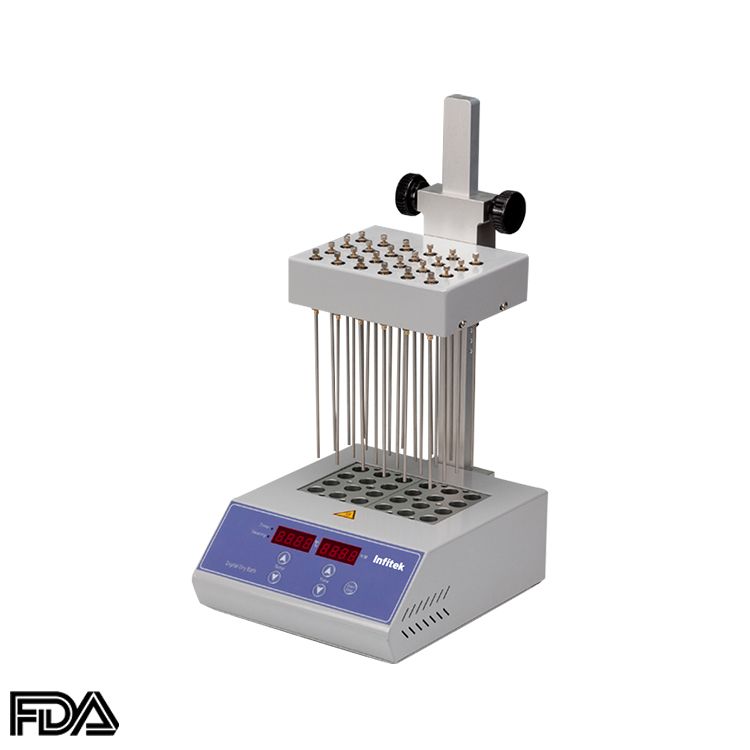

Nitrogen Evaporator, NEC160-2A
Description
NEC160-2A Nitrogen Evaporator/ Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The Test tubes are held in a block, and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.
Features:
1.High precision and wide range of temp control.
2. Blowing a large number of samples at one time.
3. Blowing each sample independently.
4. Amount of airflow can be adjusted.
5. Easy operation; safe and reliable to use.
Specifications
| Project | Parameters |
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time Range | 1-99h59min/∞ |
| Heating time | ≤15min(25℃ to 160℃) |
| Needle length | 150mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.1Mpa |
| Block qty | 2 |
| Max power | 500W |
| Voltage | AC220V or AC110V/50~60Hz |
| Size | 260x220x475mm |
| Weight | 7.5kg |
Product accessories
| Model | Tube diameter | Capacity |
| MD50 | 10mm | 12 |
| MD51 | 12mm | 12 |
| MD52 | 13mm | 12 |
| MD53 | 15mm | 12 |
| MD54 | 16mm | 12 |
| MD55 | 19mm | 12 |
| MD56 | 20mm | 12 |
