- Final condenser temp (℃): -80
- Freeze drying area (m2): 0.24-2
- Liquid material loading capacity (L): 4.5-40
- Condenser capacity (Kg/24h): 6.5-40
- Control System: Touch screen
- Cooing: Air cooling with SECOP compressor

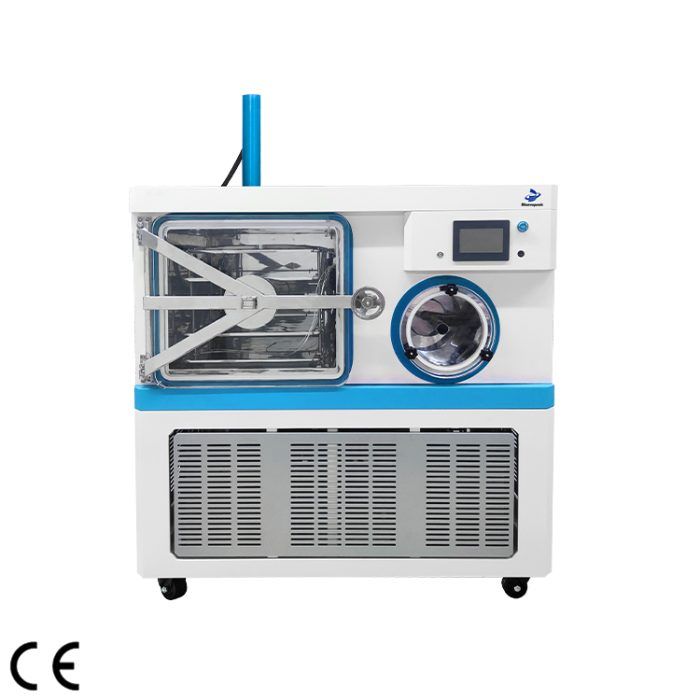

Pilot Freeze Dryer, LYOL Series
Description
Key Features:
- 7 inches colorful touch panel can display the product sample’s temperature, condenser temperature and vacuum etc in digital and curve.
- Rack temperature can adjustable, controllable which helps to search for freeze-drying technology.
- Condenserand drying chamber are separately designed which is with high moisture capture and fast dry time.
- With USB interface to export the data, convenient for user information management.
- Large-volume stainless steel condenserwithout coils, which can realize independent sample pre-freezing.
- Equipped with two working modes, manual and automatic, 40 programs can be set in the automatic operation program, and each program has 40 temperature control sections to meet the requirements of different freeze-drying processes of users;
- User level and password can be set, decentralized operation and management.
- Can save hundreds of process recipes. each group contains 40temperature control sections to improve process optimization rate
Reliability：
- In-situ freeze-drying design,avoid the contamination during material transfer;
- High performance compressor, cascade system,high cooling efficiency and fast cooling speed.
- The rack is cooled and heated by Silicone oil for more uniform temperature and 1°C accuracy.
- Condenser and operation panel are made by stainless steel.
- High transparent organic glass in Drying chamber helps users to observe materials changes.
- Pirani vacuum gauge is used to ensure stable freeze-drying performance
- Automatic defrost function.
Applications：
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Optional:
- Optional eutectic point test function, convenient for users to better explore the freeze-drying process
Specifications
| Model | LYOL-4S | LYOL-4T | LYOL-7S | LYOL-7T | LYOL-10S | LYOL-10T | LYOL-20S | LYOL-20T | LYOL-40S | LYOL-40T | ||||
| Type | Standard | Top-press | Standard | Top-press | Standard | Top-press | Standard | Top-press | Standard | Top-press | ||||
| Freeze Drying Area(m2) | 0.24 | 0.24 | 0.36 | 0.36 | 0.5 | 0.5 | 1 | 1 | 2 | 2 | ||||
| Shelf Temperature (℃) | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | ||||
| Condenser Temperature(no-loading) (℃) | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ≤-80 | ||||
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||||
| Condenser Capacity (L) | 13 | 13 | 13 | 13 | 17 | 17 | 35 | 35 | 90 | 90 | ||||
| Ice Condenser Capacity (kg/24h) | 6.5 | 6.5 | 6.5 | 6.5 | 10 | 10 | 15 | 15 | 40 | 40 | ||||
| Tray(Qty) | 2+1 | 2+1 | 3+1 | 3+1 | 4+1 | 4+1 | 4+1 | 4+1 | 6+1 | 6+1 | ||||
| Tray Dimensions(L*W*D)(mm) | 300*400*13 | 300*400*13 | 300*400*13 | 300*400*13 | 300*400*13 | 300*400*13 | 550*480*13 | 550*480*13 | 500*700*13 | 500*700*13 | ||||
| Height Between Trays(mm) | 145 | 145 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||||
| Total Loading Capacity(L) | 4.5 | 4.5 | 7 | 7 | 10 | 10 | 20 | 20 | 40 | 40 | ||||
| Temperature Uniformity(Tray) (℃) | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | ||||
| Refrigerant | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | CFC-free | ||||
| Electric Defrosting | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y | ||||
| Stoppering Mode | / | Automatic hydraulic | / | Automatic hydraulic | / | Automatic hydraulic | / | Automatic hydraulic | / | Automatic hydraulic | ||||
| Total Qty. Of Vial Φ22 | 468 | 468 | 702 | 702 | 1040 | 1040 | 2016 | 2016 | 4100 | 4100 | ||||
| Total Qty. Of Vial Φ16 | 864 | 864 | 1296 | 1296 | 1944 | 1944 | 3944 | 3944 | 7800 | 7800 | ||||
| Total Qty. Of Vial Φ12 | 1584 | 1584 | 2376 | 2376 | 3456 | 3456 | 7020 | 7020 | 14400 | 14400 | ||||
| Consumption(kW) | 3.5 | 4.5 | 3.5 | 4.5 | 6.5 | 7.5 | 9.5 | 10.5 | 15 | 16 | ||||
| Electricity | AC380V/50Hz(standard), other electricity type can be customized | |||||||||||||
| External Dimensions(W*D*H)(mm) | 1339*932*1319 | 1339*932*1601
|
1339*932*1319 | 1339*932*1601 | 1337*1015*1454 | 1337*1015*1754 | 1633*1027*1612 | 1633*1027*1912 | 1260*3710*2076 | 1260*3710*2476 | ||||
| Shipping Dimensions(W*D*H) | Main body | 1490*1140*1660 | 1490*1140*1960 | 1490*1140*1660 | 1490*1140*1960 | 1660*1260*1710 | 1660*1260*2060 | 1960*1340*1860 | 1960*1340*2210 | 1600*2050*2400 | 1600*2050*2400 | |||
| Vacuum pump | 850*330*450 | 850*330*450 | 850*330*450 | 850*330*450 | 850*330*450 | 850*330*450 | 1010*340*510 | 1010*340*510 | 1010*340*510 | 1010*340*510 | ||||
| Gross Weight(kg) | 550 | 600 | 580 | 630 | 690 | 740 | 900 | 950 | Around2500 | Around2500 | ||||
