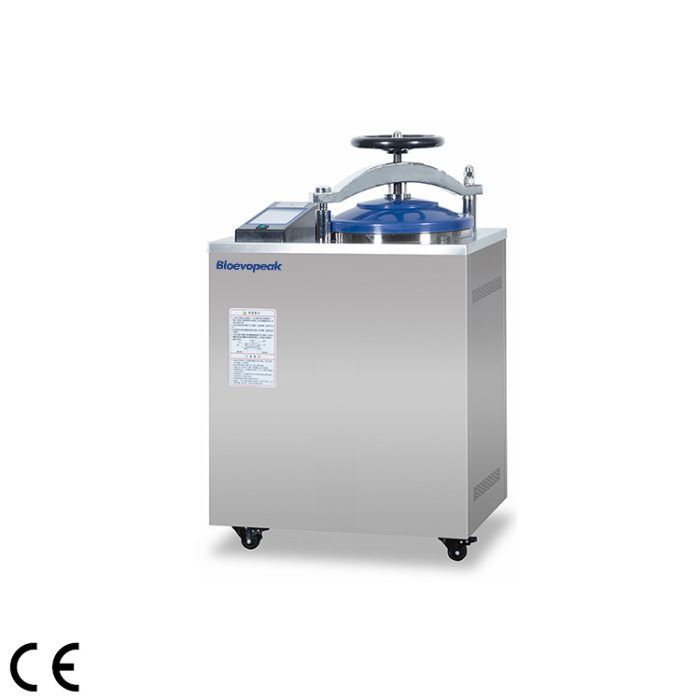

Pulse Vacuum Autoclave, Vertical Type, STV-APV Series

  1. Pulse Vacuum type
  2. Chamber volume: 35L, 50L, 75L, 100L
  3. Working temperature: 50~134ºC
  4. Working pressure: 0.22 Mpa
  5. Three times pre-vacuum
  6. Steam internal circulation
  7. With drying function

Share the product


  • Hand wheel translation and quick opening structure
  • Three times pre-vacuum
  • High quality stainless steel material
  • Microcomputer automatic control, arbitrary setting sterilization parameters
  • Safety interlocking device
  • LED touch screen display
  • Standard test interface
  • Self-expanding seal
  • With drying function
  • With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
  • With stainless steel bucket or basket
  • Buzzer reminder after sterilization, automatic stop.
  • Automatic discharge of cold air, automatic steam exhaust after sterilization.
  • Internal printer


Volume 35L 50L 75L 100L
Power 3.5kW 3.5kW 4.5kW 4.5kW
Voltage AC 220V、50HZ
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 50℃~134℃
Sterilization time setting range 4~120 min
Temp accuracy ±1℃
Drying time setting range 0~240min
Chamber volume Ø350×400 Ø400×505 Ø400×655 Ø450×650
Bucket dimension Ø330×320 Ø380×430 Ø380×560 Ø420×540
Basket dimension(optional) Ø320×350 Ø360×280×1 Ø360×280×2 Ø410×300×2
Outer dimension 698×498×940 630×530×1180 630×530×1180 760×560×1260
Packing size 790×610×1130 800×600×1230 840×610×1310 870×650×1380
(L× W× H )mm
Gross/net weight 130/115KG 138/118KG 150/124KG 159/132KG
