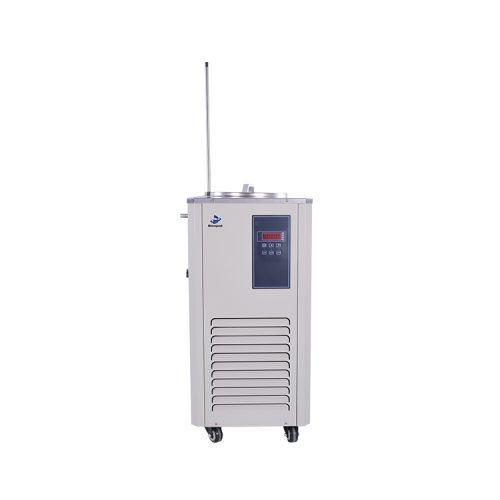

Refrigerated Circulator, RECL10-5, RECL30-50, RECL40-100

  1. Usage temperature range: -10 ℃/ -30 ℃/ -40℃~room temperature
  2. Display: LCD display, key operation
  3. Condensation coil: Φ8/ Φ16/ Φ19 copper tube plated by nickel

Share the product

Description

This product is mechanically cooled by a totally enclosed compressor. The inner wall of the cooling tank has cooling copper coils. The refrigerant (Freon) continuously circulates through the coil on the inner wall of the water tank to cool the refrigerant in the tank. And then the refrigerant is conveyed to interlayer of the supporting equipment or the condensation coil through built-in circulation pump and external circulation pipeline. This method can cool the material in the reactor indirestly, and also cool & liquefie the steam in contact with condensation tube.

Generally speaking, this product can connect with the interlayer of a double-layer glass reactor, rotary evaporator, and condensation coil of the reactor for usage. It is also feasible to directly put objects or containers which need to be cooled into the bath for cooling or reaction.

The outlet pipe of this product is connected to the lower inlet pipe of the kettle or condenser. The circulating liquid comes out from the upper circulation port and returns to the inlet of this product through the pipe, forming a complete circulation.

Specifications

Model RECL10-5 RECL30-50 RECL40-100
Usage temperature range -10 ℃~room temperature -30 ℃~room temperature -40℃ ~room temperature
Environment temperature 5 ~35 ℃
Environment humidity ≤70% ventilation
Power supply Single phase 220V/50HZ Single phase 220V 50Hz/110V 60Hz Three phase 380V/50HZ
Safety protection Delay, over-current, overheat Delay, overcurrent, overheating, phase sequence, phase loss protection
Display LCD display, key operation
Temperature control accuracy ±0.1℃
Sensor PT100
Total power 652W 2485W 7990W
Compressor Specification Small 1P Specification 3P Specification 10P
Quantity 1 Quantity 1 Quantity 1
Power 500W Power 2205W Power 7350W
Cooling capacity 1550W Cooling capacity 6972W Cooling capacity 23240W
Circulation pump Power 100W Power 100W Power 280W
Lift 4-6M Lift 4-6M Lift 10-12M
Flow 20-40L/min Flow 20-40L/min Flow 30-50L/min
Pressure ≤0.4MPa Pressure ≤0.4MPa Pressure ≤0.4MPa
Air-cooling condenser Power 52W Power 180W Power 360W
Heating exchange area 4.2㎡ Heating exchange area 21.2㎡ Heating exchange area 39㎡
Air volume 760m³/h Air volume 3400m³/h Air volume 6800m³/h
Refrigerant R134A R404A R22
Condensation coil Φ8 copper tube plated by nickel Φ16 copper tube plated by nickel Φ19 copper tube plated by nickel
Equipment material Cold plate spray, anti-corrosion
Water tank dimension&volume Φ220×180H(mm) 6.8L Φ450×350H(mm) About 55L Φ500×500H(mm) 98L
Available size in water tank Φ185mm Φ350mm Φ390mm
Cover opening Φ200mm Φ350mm Φ350mm
Outer circulation interface Pagoda joint with Φ12mm outer diameter (facing the left side of the equipment) Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment) Pagoda joint with Φ19mm outer diameter (facing the left side of the equipment)
Overall dimension(W*D*H) 423 ×485×(760+ 400)mm 795×770×(1150+pole 500)mm 845×1100×(1365+pole 500)mm
Net weight 56KG 119KG 250KG
Packing dimension 590×430×880mm carton package 0.21m³ 830×740×1280mm wooden package 0.79m³ 1190×880×1540mm  wooden package 1.61m³
Packing weight 58KG 162KG 290KG
