- Heating Mode:Surface heat-conduction
- Surface Max. Temp.( ℃):450℃
- Temperature control range:RT+20～250℃
- Heating element:Nickel chromium alloy wire
Several Rows Magnetic Stiring Heating Mantles, HMSD Series
Description
DESCRIPTION
DESCRIPTION
1.Electronic temperature regulation heating mode .Heating and stirring can proceed simultaneously; stepless speed adjustment.
2..within 100ml

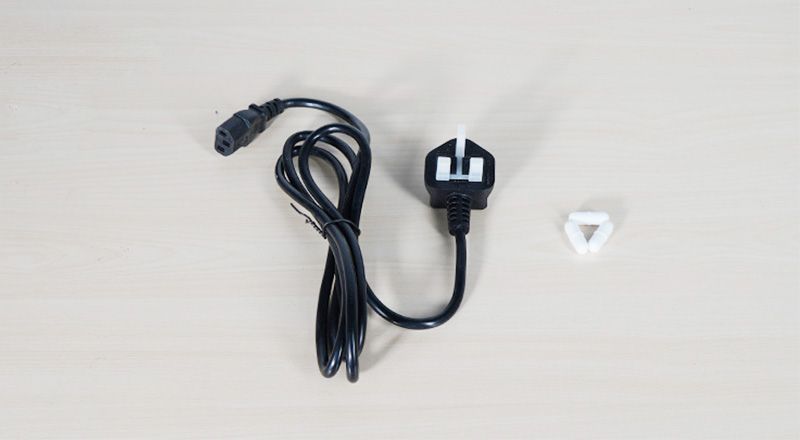

ACCESSORIES
ACCESSORIES
PACKING
PACKING
 |
 |
 |
SPECIFICATIONS
SPECIFICATIONS
| Model | HMSD-2P2 | HMSD-2P5 | HMSD-2P10 | HMSD-2P20 | HMSD-4P2 | HMSD-4P5 | HMSD-4P10 | HMSD-4P20 | HMSD-6P2 | HMSD-6P5 | HMSD-6P10 | HMSD-6P20 | |
| Function | Specification | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 |
| (ml) | × | × | × | × | × | × | × | × | × | × | × | × | |
| 100 | 250 | 500 | 1000 | 100 | 250 | 500 | 1000 | 100 | 250 | 500 | 1000 | ||
| Heating | Surface heat conduction | ||||||||||||
| mode | |||||||||||||
| Surface | 450℃ | ||||||||||||
| Max. | |||||||||||||
| temperature | |||||||||||||
| Temp. | Rt+vfc20～250℃ | ||||||||||||
| range | |||||||||||||
| Speed | 0～1600rpm | ||||||||||||
| range | |||||||||||||
| Structure | Heating | Nickel chromium alloy wire | |||||||||||
| element | |||||||||||||
| Stir | PTEF | ||||||||||||
| bar | |||||||||||||
| Outer | Cold rolled steel plate, surface spraying | ||||||||||||
| shell | |||||||||||||
| Motor | 0.01kW | ||||||||||||
| power | |||||||||||||
| Heating | 2× | 2× | 2× | 2× | 4× | 4× | 4× | 4× | 6× | 6× | 6× | 6× | |
| Power | 0.1 | 0.15 | 0.25 | 0.35 | 0.1 | 0.15 | 0.25 | 0.35 | 0.1 | 0.15 | 0.25 | 0.35 | |
| （kW） | |||||||||||||
| Controller | Work | Continuous | |||||||||||
| model | |||||||||||||
| Specification | Exterior | 280 | 320 | 360 | 420 | 530 | 610 | 690 | 810 | 820 | 940 | 1060 | 1240 |
| Size | *140 | *160 | *180 | *210 | *140 | *160 | *180 | *210 | *140 | *160 | *180 | *210 | |
| (mm) | *106 | *170 | *180 | *200 | *160 | *170 | *180 | *200 | *160 | *170 | *180 | *200 | |
| Packing | 320 | 360 | 400 | 570 | 570 | 650 | 730 | 850 | 860 | 980 | 1100 | 1280 | |
| size(mm) | *180 | *190 | *220 | *180 | *180 | *190 | *220 | *250 | *180 | *190 | *220 | *250 | |
| *190 | *200 | *210 | *190 | *190 | *200 | *210 | *230 | *190 | *200 | *210 | *230 | ||
| Voltage | 100～120V or 200～240V | 200～240V | |||||||||||
| N.W.(Kg) | 4 | 4 | 4 | 7 | 8 | 8 | 8 | 14 | 12 | 12 | 12 | 21 | |
| G.W.(Kg) | 5 | 5 | 5 | 8 | 10 | 10 | 10 | 16 | 15 | 15 | 15 | 24 | |
