- 15-inch LED display, anglerange is more flexible to adjust
- Display Mode:B, B+B, B+M, M, 4B
- Back-lit keyboard silicon gel, morecomfortable and wearable, no trouble in using in the darkroom.
- 3probe interfaces
- All four casters are equipped with foot brakes

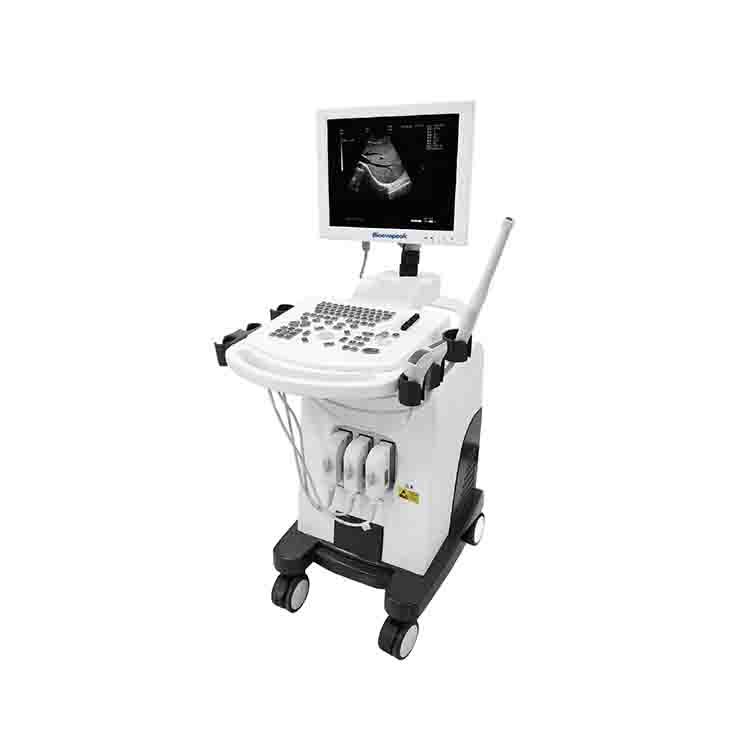

Ultrasound Diagnostic System, US-D370
Description
It satisfies the inspection and diagnosis of primary hospitals in the abdomen, obstetrics, gynecology, heart, urinary system, small organs, body surface, blood vessels, and pediatric physical examination.
Features
- Professional medical monitors make the images more intuitive.
15 inch LCD monitor.
Telescopic lifting support.
- Multiple features allow doctors to respond to multiple needs.
Support OB Report.
Support Various pseudo-color.
Display puncture guideline, angle and position adjustable.
- Rich interfaces allow for more functionality.
3 probe connectors
USB interface for real-time image storage
Specifications
| Model | US-D370 |
| Main Parameters | |
| Operating System | ARM chip architecture, stable, concise and powerful |
| Active Probe Socket | Three active probe sockets, able to select the inspection site |
| Display Mode | B, B+B, B+M, M, 4B |
| Display | 15-inch, 1024*768, high-definition LCD screen |
| System Language | English, Spanish, French |
| Probe Options | |
| Convex probe (C3-2) | Central frequency is 3.5MHz.
Multi-frequency: 2.0MHz/2.5MHz/3.5MHz/5.0MHz/, each frequency conversion corresponds to the corresponding harmonic frequency. (Depth adjustment: ≥19 level, adjustment range 50-280mm) |
| Linear Probe (L3-2) | Central frequency is 7.5MHz
Multi-frequency: 6.5MHz/7.5MHz/8.5MHz/9.0MHz, each frequency conversion corresponds to the corresponding harmonic frequency (Depth adjustment:≥6 levels , the adjustment range is 50-100mm) |
| Trans-Vaginal Probe (EC1-2) | Central frequency is 6.5MHz
Multi-frequency 4.0MHz/5.0MHz/6.5MHz/8.0MHz, each frequency conversion corresponds to the corresponding harmonic frequency (Depth adjustment: ≥6 levels, adjust Range 50-100mm) |
| 2D Mode | |
| Gain | 0-100, step 1 can be adjusted visually |
| TGC | 8-segment adjustable |
| Dynamic Range | 0-120db |
| Scanning Angle | 80-100 |
| Focus | Adjustable focus position, 4 focus points |
| Frame Correlation | 4-100 |
| Speckle Suppression | 0-50 |
| Power | 40-100, step 4 |
| Magnification | 1-16 |
| Grayscale Mapping | 1-19 |
| Body Mark | ≥109 kinds, support body position indicator |
| Pseudo-Color | 28 kinds |
| Function | With gravel positioning function, real-time measurement data |
| Support up and down flip, left and right flip, black and white flip | |
| Auto freeze setting | |
| Scan Speed in M Mode | 1-63 |
| Time Setting | Date time, date format, time format and other settings |
| Automatic Sleep Time | 6-99 minutes |
| Image Save Format | BMP |
| Cine Loop | 256 |
| Measurement and Analysis Functions | |
| General Measurement Functions | Distance, perimeter-ellipse, perimeter-track, area-ellipse, area-track |
| Specialist Measurement Functions | Volume, angle, distance stenosis ratio, area stenosis ratio |
| Graphic Management System | |
| U Disk Storage and Host Image Storage Function | Picture save format: BMP |
| Movie Playback | ≥256 frames |
| Support Report Image Export to U Disk | Yes |
| Ports | VGA *1, VIDEO *1, USB *2 |
| Configurations | |
| Cart-Based Ultrasound Host | 1 |
| Probe Options | C3-2 convex probe, L3-2 linear probe, EC1-2 trans-vaginal probe |
| Thermal Printer (SONY UP-X898MD) | Optional |
| Dimension&Weight | |
| External Dimension | 579.1*710.69*1220.33mm |
| N.W./G.W. | 46kg/100kg |
| Shipping Dimension | 900*860*1360mm（Screen not included） |
