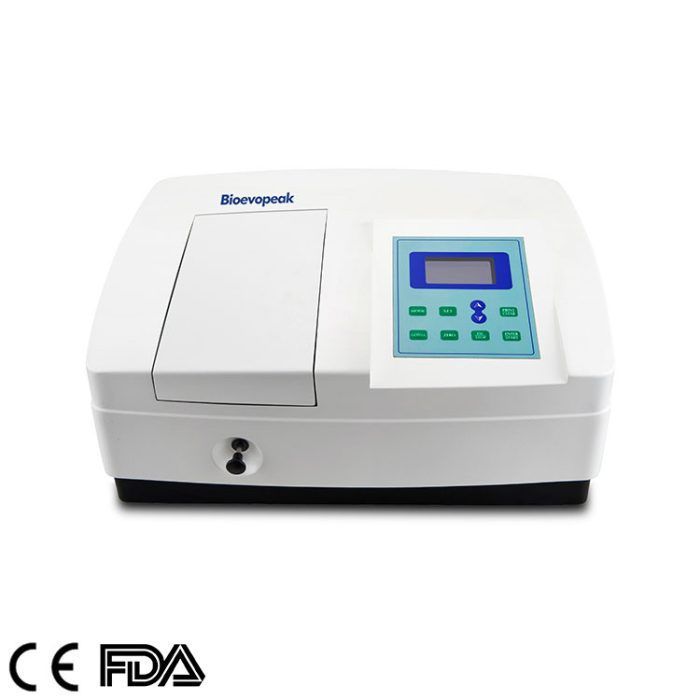

UV VIS Spectrophotometer, Single Beam, SP-MUV5100B

  1. Wavelength Range: 190-1000nm
  2. Wavelength Accuracy: ±1nm
  3. Output: USB & Parallel Port(Printer)
  4. Low stray light
  5. Auto setting wavelength
  6. Stability and durability
  7. Standard curve
  8. Multiple results readout

Share the product

Description

SP-MUV5100B is a parctical UV visible spectrophotometer. It’s special structural design ensures high reliability and easy replacing of components.

1.Low stray light

SP-MUV5100B is made of high quality components with rigid structure which ensures low stray light.

2.Auto setting wavelength

Users can set wavelength automatically through arrow keys to avoid operation errors.

3.Stability and durability

SP-MUV5100B users a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

4.Data output

SP-MUV5100B is equipped with USB port to connected with a PC to display spectrum scanning,kinetics and multi wavelength testing results on the screen. The software is optional.

5.Standard curve

SP-MUV5100B can set up various standard curves according to customer’s solutions and find theconcentration of unknown solutions.

6.Multiple results readout

SP-MUV5100B can display wavelength, absorption and transmittance with 5 results per screen.

It also has a memory store of up to 200 results.

Specifications

Technical Specification

Model SP-MUV5100B
 Optical System Single beam, Grating 1200 lines/mm
 Wavelength Range 190-1000nm
 Bandwidth 2nm
 Wavelength Accuracy ±1nm
 Wavelength Repeatability 0.5nm
 Wavelength Setting Auto
 Photometric Accuracy ±0.5%T
 Photometric Repeatability ≤0.2%T
 Photometric Range -0.3-3A,0-200%T,0-9999C
 Stray Light ≤0.05%T@360nm
 Stability ± 0.001A/h @ 500nm
 Display 128*64 LCD
 Detector Silicon Photodiode
 Light Source Tungsten  Lamp&Deuterium Lamp
 Output USB & Parallel Port(Printer)
 Power Requirements AC 85~250V
 Dimension 490*370*220mm
 Weight 15kg

Standard Accessories

Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 1 cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs
