Home>Products>Freeze Dryer>Benchtop Freeze Dryer, LYO60B-1S

Benchtop Freeze Dryer, LYO60B-1S

  1. Freeze drying area: ,0.12m
  2. Final condenser temp: -60℃
  3. Ice condenser capacity (Kg/24h): 3
  4. Material loading capacity(ml): 1200
  5. SECOP compressor
  6. Type: Standard chamber

Share the product




1.Stainless steel cold trap
2.Pre-freezing shelf
3.Thermal insulation cover
4.SECOP compressor
5.High efficient condenser

1.Optional for gas interface: can inject inert gas.
2.Optional for cold trap electrical heating defrost function.
3.Optional for rack heating which is help to test in production.
4.Eutectic point testing, it can have sublimation temperature.

freeze dryer

freeze dryer

Adjustable product shelf

freeze dryer

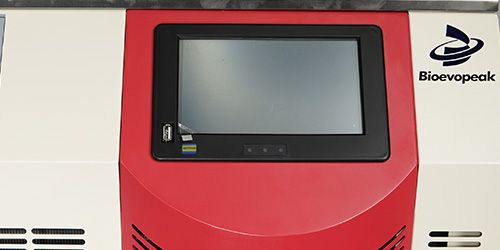

Touched screen with USB interface

  • 7’’ colorful touch panel can display the product sample’s temperature,cold trap temperature and vacuum etc in digital and curve.
  • Touch panel with the design conforms to ergonomics and operate more comfortably
freeze dryer

International standard vacuum port



Model LYO60B-1S LYO60B-1T LYO60B-1P LYO60B-1PT
Type Standard chamber Stoppering
chamber with
8port manifold
standard stoppering
chamber with 8port manifold
Final condenser temp (℃) -60 -60 -60 -60
Vacuum Degree(Pa) <10 <10 <10 <10
Condenser volume (L) 6.5 6.5 6.5 6.5
Freeze drying area(m2) 0.12 0.09 0.12 0.09
Ice condenser capacity (Kg/24h) 3 3 3 3
Qty of shelf 4 3 4 3
Material loading capacity/ shelf (ml) 300 300 300 300
Material loading capacity(ml) 1200 900 1200 900
Freeze drying time( h) 24 24 24 24
Manifold / / 8 pieces 8 pieces
USB Interface Y Y Y Y
Drying Chamber(standard) transparent acrylic
Vacuum Pump Speed:2L/s
Control System microprocessor, touch screen
Power supply (V/Hz) 220V/50Hz, 60Hz
Exterior dimension(W*D*H mm) 582*541*374/684
Penicillin bottle Φ22 260 195
Penicillin bottleΦ16 480 360
Penicillin bottleΦ12 920 690

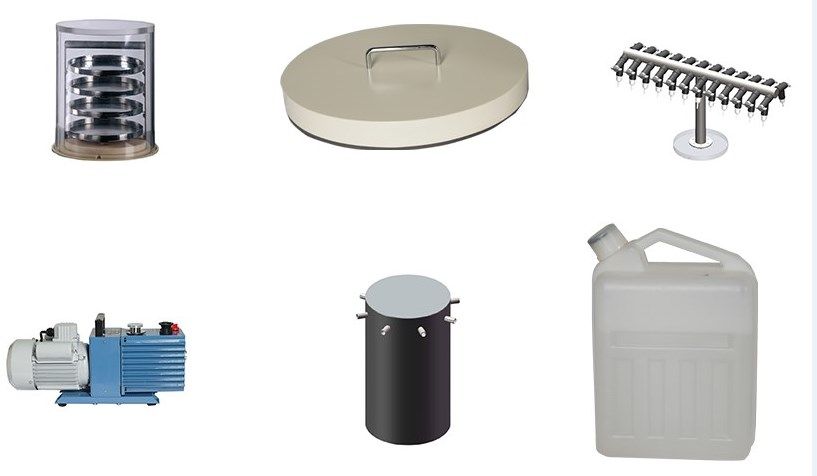

Accessories & Package

Accessories & Package

freeze dryer
