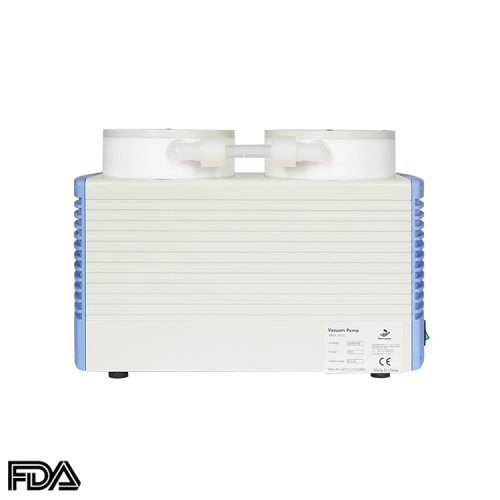

Diaphragm Vacuum Pump, VACP-D21

  1. Pumping Speed: 15 (L/Min)
  2. Ultimate Vacuum: 250 mbar
  3. Positive-negative pressure dual purpose
  4. Air Inlet/Outlet: φ6 mm

Share the product

Description

DESCRIPTION

DESCRIPTION

  • No need for any working medium (no oil), no pollution. The air exchange chamber is equipped with filter materials to ensure the air purity.
  • Adopt new technology and new materials in the production process. Easy to move and work smoothly, thus ensuring an ideal vacuum degree and a high air flow rate.
  • The special electricity motor is provided by the expert motor manufacturer ODM. Reasonable rotation design, equipped with an overheating power-off protector, will automatically power off when the pump body temperature reaches 130°C, and protect the motor from damage during long-term operation.
  • Adopt frictionless film movement, no heat generation, no friction loss. The diaphragm is made of imported rubber, which is corrosion resistant and has a long service life.
  • Automatic cooling and exhaust system, which ensures continuous operation for 24 hours.
  • The pressure adjustable design can meet the vacuum degree and gas flow rate within a certain range.
  • The bearing adopts imported classic bearings, with stable operation, low noise and high working efficiency.
  • The parts of the anti-corrosion pump in contact with gas are treated with Teflon surface treatment, which is resistant to chemical corrosion.
  • Small size, light weight, easy to move, saving laboratory space, convenient for repair and maintenance.

SPECIFICATIONS

SPECIFICATIONS

VACP-D21
Pumping Speed (L/Min) 15 Operating Ambient Temperature (°C) 7-40
Ultimate Vacuum 250mbar Pump body Temperature(°C) <55
Voltage 220Vac,50Hz Dimension(L×W×H) (mm) 245x120x160
Power 75W Weight(Kg) 4
Positive Pressure ≥30Psi Pump Head Material Nylon
Air Inlet (mm) φ6 Noise(BD) <60
Air Outlet (mm) φ6 Note Positive-negative pressure dual purpose

ACCESSORIES & PACKAGE

ACCESSORIES & PACKAGE

Diaphragm Vacuum Pump, VACP-D21 04
