- Multi-function detection
- Measurement items: pH, TCO2,Na+, K+, Cl-, Ca2+
- Test Method: Automatic sampling
- Testing time: 50s

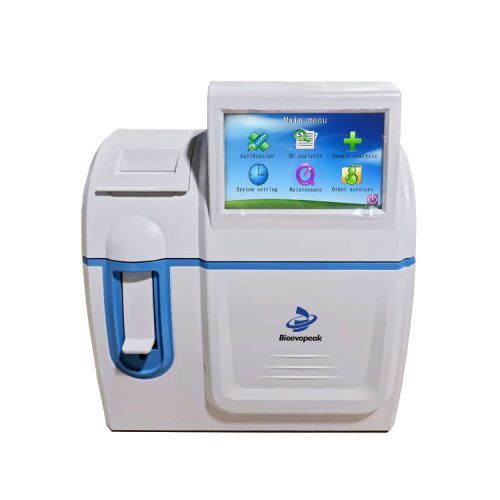

Electrolyte Analyzer, EA-6-50
Description
Description
The electrolyte analyzer adopts advanced all-solid-state ion-selective electrode sensor measurement technology, and the sample does not need to be centrifuged; It has large screen display, automatic screensaver, friendly interface, convenient and simple operation, is a high degree of automation, complete functions, easy operation, and is accurate and reliable clinical testing equipment.
Features
- Advanced technology
Solid electrode technology
Liquid calibration technology
Wet measurement mode, with good repeatability and high accuracy
- Cost-effective
Catridge type reagent package
- Easy operation
8”colorful graphical touch screen operation
Each measurement channel can be used separately.
- A) 24 hours continuous working, make sure of detection in time.
- B) Sampling system washed automatically, avoid blocking.
Specifications
| Model | EA-6-50 |
| Measurement items | pH, TCO2,Na+, K+, Cl–, Ca2+ |
| Calculation parameters | PCO2 (TC),TCa, nCa |
| Sample | Whole blood 150ul |
| Test Method | Automatic sampling |
| Testing time | 50s |
| Printer | Build-in thermal printer |
| Display screen | 8″TFT colorful LCD touch screen |
| Storage | ≥5000 test results |
| Interface | RS232 |
| Electricity | 100V~240V , 47Hz~63Hz |
| Item | Reference Range | Linearity Range |
| K+ | 3.5- 5.5 mmol/L | 1.60 – 7.50 mmol/L |
| Na+ | 135- 145 mmol/L | 100 – 180 mmol/L |
| Cl– | 96 – 108 mmol/L | 85- 150 mmol/L |
| Ca++ | 1.1- 1.4 mmol/L | 1.50 – 3.00 mmol/L |
| pH | 7.35- 7.45 | 3.000 – 12.0000 |
| PO2 | 60 – 100 mmHg | 0- 800.0 mmHg |
| PCO2 | 35- 45 mmHg | 2.0-200.0 mmHg |
