Heating Incubator, ICB-B/BE Series

  1. Voltage(V): 220V/50HZ
  2. Temperature variation (℃): RT+5~80℃
  3. Temperature fluctuation(℃): ±1.0℃
  4. Temperature resolution(℃): 0.1℃

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

Laboratory Heating Incubator is designed to accommodate an ample range of laboratory applications and lends a contamination-free environment for cell and tissue cultures. These incubators serve the purpose for most biological analysis, research, general laboratory applications, biochemical studies, bacteriology, and hematological studies.

 heating incubator ICB-30B-ICB-45B-ICB-65B-ICB-125B                                       Heating Incubator, ICB-BBE Series
ICB-30B~ICB-125B                                                        ICB-30BE~ICB-125BE

Standard type:

  1. The shell is made of high-quality cold-rolled steel plate, and the surface is treated by electrostatic spraying process.
  2. The working room is made of high-quality mirror-finished stainless steel, and the four corners are in arc transitions.The surface is treated by anti-corrosion process.The spacing of the partitions is adjustable. The quick detachable structure of the bottom heating cover is convenient for cleaning.
  3. The PID microcomputer intelligent temperature controller has functions such as precise timing of temperature control, over-temperature alarm, precise temperature control, and convenient reading.
  4. The box door with new structure has good heat insulation effect.There is a double-layer tempered glass observation window with a large viewing angle in the middle, equipped with a lock-type elastic adjustment door lock, and a high-temperature resistant silicone sealing strip to ensure good tightness and prevent heat loss.
  5. The heating power has two gears, which can meet the needs of users at high and low temperature.

Functional type:

In addition to the standard functions, it also has the following functions:

  1. Large-screen LCD display.
  2. The independent temperature limit system has the function of over-temperature interruption. When the main controller fails, it will alarm and cut off the output in time, which double protects the safety of the experiment.

SPECIFICATIONS

SPECIFICATIONS

Model Standard type ICB-30B ICB–45B ICB–65B ICB–125B ICB-230B
Functional type ICB–30BE ICB–45BE ICB–65BE ICB–125BE ICB-230BE
Voltage(V) 220V/50HZ
Temperature variation (℃) R+5-80℃
Temperature fluctuation(℃) ±0.5℃
Temperature resolution(℃) 0.1℃
Accuracy of temperature distribution (℃) ±1.0℃
 power(kw) 0.15 0.25 0.5 0.6 0.7
Interior dimensions 310×310×310 350×350×350 400×360×450 500×450×550 600*500*750
Exterior dimensions

( W×D×H)

(mm)

460×510×695 500×550×735 550×550×840 636×680×915 730*670*1220
Packaging dimensions ( W×D×H)

(mm)

550×570×765 620×585×800 640×640×905 730×720×1000 900*800*1350

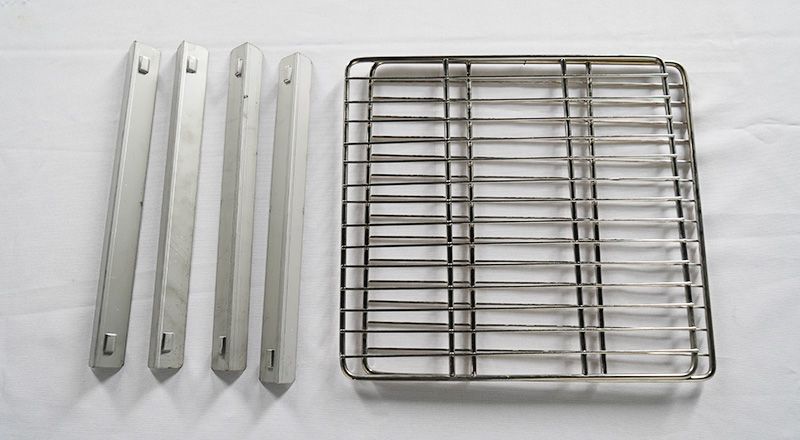

Load per rack(kg) 15/kg 2 for standard configuration
Net weight/Gross weight (kg) 38/51 41/54 42/59 57/71 70/115
Timing range 1-9999min
