Dry Shipper Liquid Nitrogen Container, LNC-D Series

  • LN2 Capacity : 3L- 25L
  • Neck Opening:  50mm; 80mm; 125mm; 216mm
  • Round pails/freezer racks storage
  • Suitable for short-term air transportation such as airplanes

Share the product

Description

DESCRIPTION

DESCRIPTION

Product Overview

Dry shipper series liquid nitrogen container is suitable for cryogenic environment (vapor storage at temperatures below -190 °C) transportation for samples. It could avoid the risk of the liquid nitrogen releasing during transportation, especially designed for short-term air transport. The internal liquid nitrogen adsorbent, can absorb and save liquid nitrogen, even if the container falls down, liquid nitrogen would not pour out. It uses special stainless steel mesh to separate storage space and absorption material, to avoid liquid nitrogen absorption material mb

Product Features

  1. Vapor cryogenic storage;
  2. Fast liquid nitrogen filling;
  3. High strength aluminum construction;
  4. Lockable lid;
  5. No liquid nitrogen overflow;
  6. Straws or vails storage is optional;

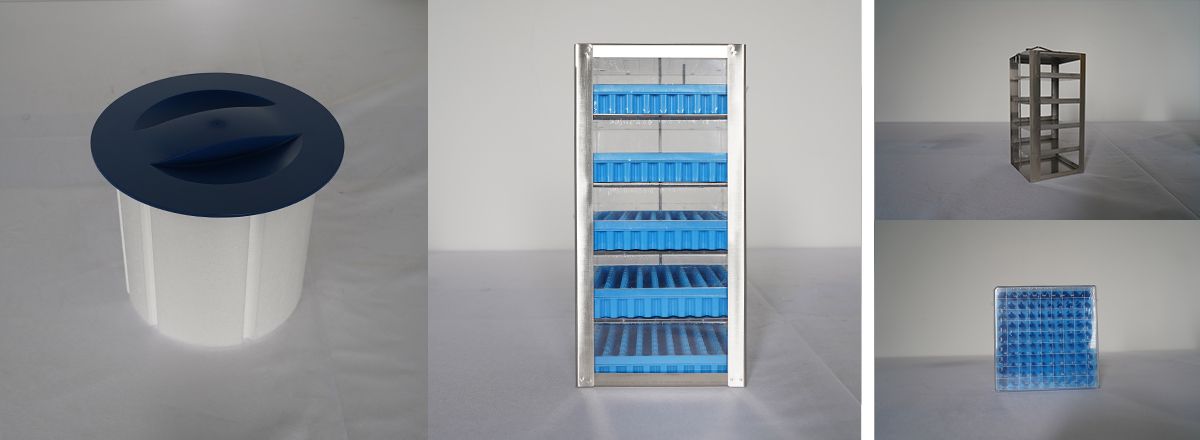

Liquid Nitrogen container LNC-D Stainless steel mesh Stainless steel mesh
Liquid Nitrogen container Lockable lid Lockable lid

SPECIFICATIONS

SPECIFICATIONS

Products Dry Shipper Liquid Nitrogen Container
Model LNC-D1-50 LNC-D3-80 LNC-D4-125 LNC-D9-216
Performance
Capacity (L) 3 6 10 25
Effective Capacity (L) 1.3 2.9 3.4 9
Weight Empty (kg) 3.2 4.9 6.7 15
Neck Opening (mm) 50 80 125 216
Outer Diameter (mm) 223 300 300 394
Overall Height (mm) 435 487 554 716
Static Evaporation Rate (L/day) 0.16 0.2 0.43 0.89
Static Holding Time (day) 20 37 23 29
Effective Shelf Life 8 14 8 10
Maximum Storage Capacity
Canister Canister Diameter (mm) 38 63 97
Canister Height (mm) 120 120 120
Number of Canisters (ea) 1 1 1
Straws Capacity (120 mm canister) 0.5 mL (ea) 132 374 854
0.25 mL (ea) 298 837 1940
Racks and Vials Boxes Number of Racks (ea) 1 1
Vial Boxes Dimension (mm) 76×76 134×134
Boxes per Rack (ea) 4 5
1.2;1.8&2 mL Vials (Internally Threaded) 100 500
25 mL blood bag Number of Racks (ea) 1 1
Stages per Rack (ea) 1 2
Boxes per Stage (ea) 3 15
Blood Bag Capacity (ea) 3 30
50 mL blood bag Number of Racks (ea) 1 1
Stage per Rack (ea) 1 1
Boxes per Stage (ea) 3 15
Blood Bag Capacity (ea) 3 15
Optional Accessories
Lockable Lid P P P P
PU Bag(Protective jacket) P P
Smart Cap P P P P
