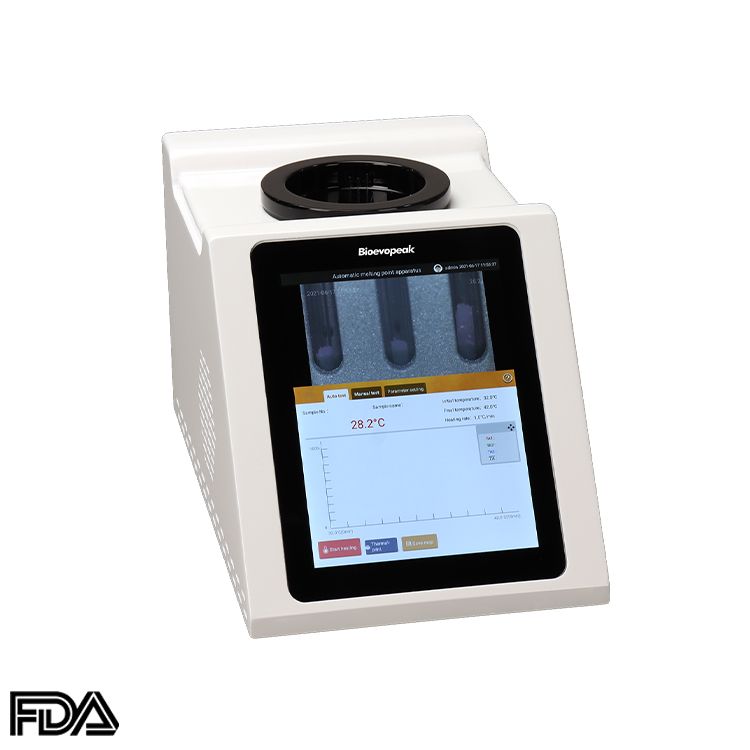

Video Melting Point Apparatus, MTP4 Series

  • Measurement range: R.T.-300℃,R.T.-350℃,R.T.-400℃
  • Number of capillary: 4
  • Multi-user ID Classify Function
  • Video or atlas reply
  • Measurement methods: automatic; Visual

Share the product

Description

MTP420/MTP430 Video Melting Point Apparatus, and MTP450/MTP470/MTP490 Automatic Video Melting Point Apparatus, perfectly integrate video technology into melting point measuring. It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video,stamp video and so on. It also provides better help for users to observe melting process of sample.

1.Visual and Automatic Determination

It includes a color display to observe the phase transition, equipped with a video camera and a video replay function which allows to review the melting point determination. It also suits for color samples, which tradition automatic melting point apparatus not available.

2.Available Testing 4 Samples Concurrently

Max concurrent sessions 4 samples each batch, it can record and track each result independently, which meets FDA CFR21 part 11 requirements.

3.Multi-user ID Classify Function

Adopts User ID management function. Users ID are available for adding, deleting and jurisdiction setting.

4.All Screen Design

Adopt a 8 inch capacitive touch screen, with the brilliant Android system, let the operating easier.

5.Amazing Data Processing & Exporting

The methods, atlas and detailed result are available for storage. Connecting printer or all data export are both available.

Specifications

Model MTP420 MTP430 MTP450 MTP470 MTP490
Capillary position capacity 4
Magnification of lens 8
Display Color TFT 8inch Touch Screen
Temperature Range R.T.-300℃ R.T.-350℃ R.T.-350℃ R.T.-400℃ R.T.-400℃
Temperature Accuracy 0.4 at 200℃; 0.7 at 300℃
Temperature Resolution 0.1℃
Temperature Repeatability 0.2℃ at 0.5℃ per min
Temperature Gradients 0 to 20℃ step-less
Video & Camera Camera Video&camera
Video reply no yes yes yes yes
Automatically find Melting point manual automatic
Room Capacity 8GB 16GB 16GB 30GB 128GB
Atlas Storage 0 0 100 200 500
Method Storage 0 30 80 100 200
Communication ports USB,WiFi, Internet, RS232
Printer HP printer via wifi; thermal printer
ID management no 20 20 30 100
User Classification no yes yes yes yes
Data Tracking no yes no yes yes
FDA CFR21 part11 no yes no yes yes
