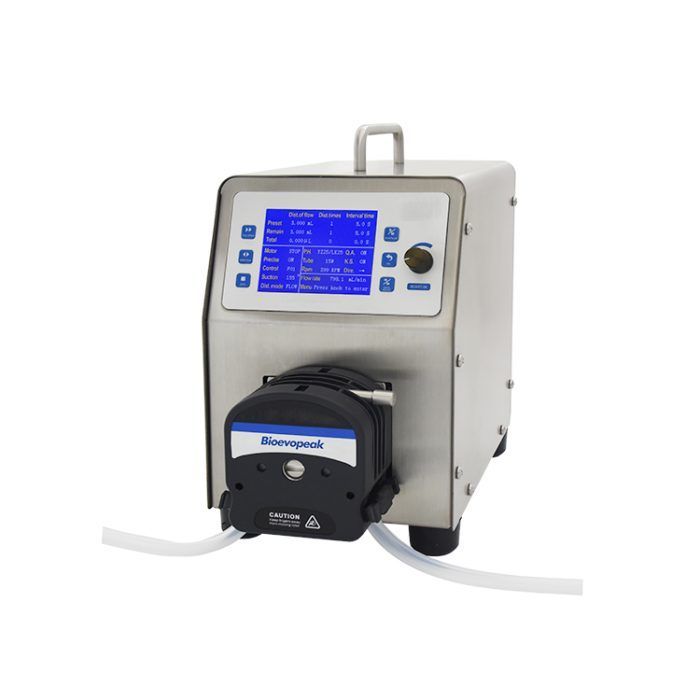

Peristaltic Pump, PP-Z400/PH-Z1880

  • Flow:0.169-1880mL/min
  • RPM: 0.1-400rpm
  • Dispensing volume: 400μL-9999L
  • Dispensing time: 0.1-999.9S
  • Dispensing mode: Timed / Copy / Volume dispense

Share the product

Category:

Description

1. High definition LCD (3.5 inch) shows all the parameters at the same time, and an all-new interface that makes setup and operation easier than ever.

2. Using “double CPU” control, drive and control are separated, Accurate one-key filling let repeating precision up to ± 0.5%. Can be widely used in the production line for timing and quantitative transmission.

3. Featured dispensing and transmission working mode and including three kinds of dispensing mode-timed dispense, copy dispense, volume dispense. Suck back angle can be set arbitrarily within 720 degree.

4. The flow rate can be calibrated; Start/stop/reverse are available; Full speed can purge the tubing rapidly.

5. These precision drives offer analog remote control options such as capacitance sensor, liquid level sensor, photoelectric sensor and foot switch -ideal for automated process applications.

6. Using the stepper motor to control speed, high precision and is not affected by the change of load, large torque, low power consumption, strong adaptability.

7. Excellent driving circuit performance, good heat dissipation, low noise, stable running, with power off memory function. Conformal coating is used on the circuit board, anti interference characteristics and wide voltage design, suitable for complex environment.

8. PP-Z series have handles, easy to carry. Can accept multiple pump heads.

9. The main body is made of polyphenylene sulfide (PPS) material, The roller device is made of 304 stainless steel, All gaskets are made of PTFE gaskets

Application

It is used for precise filling and mechanical matching of small and medium doses of various liquids, such as pharmaceutical, food, chemical, biological, laboratory, environmental engineering and other industries; the most prominent feature of LK series products is their high linearity and stable flow ; Good flow repeatability, the tube is not easy to run out of the pump head and the tube is forced, and the reliability is high.

Specifications

Drive Model: PP-Z400  Pump head model: PH-Z1880
RPM 0.1-400rpm Dispensing time 0.1-999.9S Using tubing 15#、24#、35#、36#
Speed resolution 0.1rpm(≤100rpm)
1rpm(>100rpm)
Dispensing volume 400μL-9999L Flow range 0.169-1880mL/min
Filling volume resolution 0.001-0.01mL
(Different according to the tubing)
Times 0-9999
(0 Infinite loop)
Tubing wall 2.4mm Roller seal Yes
Repeat error ±0.5% Intervals 0.1-999.9s Pressure adjust No Factory pressure 0.15Mpa
Retention error 100rpm,1% within 68 hours
(Filling special tube)
Suction angle 0-720° Shell material PPS
Display LCD screen (3.5 inch) Protection level IP31 Roller material SS
Operation Membrane keypad +Digital control knob Power ≤45W Roller No. 4
Working environment Temperature, 0℃ to 40℃
Relative humidity < 80%
Weight 6.8kg Product No. 2022503
External speed control 0-5V (optional)、0-10V (optional)、4-20mA (standard), 0-10K (standard)
Type of external control Start /stop, Direction change TTL 5V (standard), TTL 12V (optional), TTL 24V (optional)
Port output DC12V Power Output; DC5V TTL Output (optional)
Communication Interface RS232, RS485 (Start/stop, Direction change, speed control)
Power supply AC220V±10%, 50Hz/60Hz(standard); AC110V±10%, 50Hz/60Hz; AC380V±10%, 50Hz/60Hz(optional)
