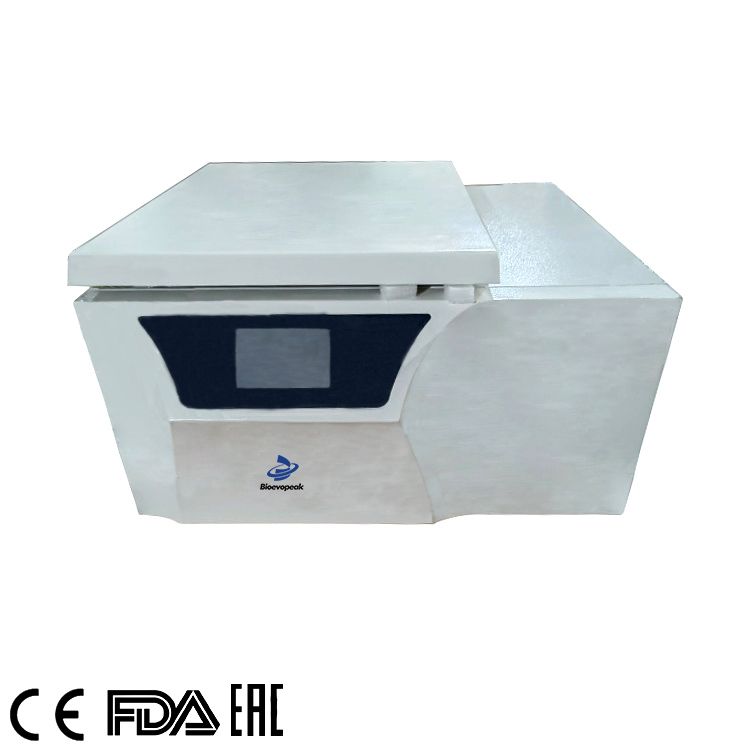

Refrigerated Centrifuge, Low Speed, CFGR-5BL

  1. Max. Speed: 4200rmp/min
  2. Max. RCF: 3500×g
  3. Max. Capacity: 4×500mL
  4. Temperature Setting: -10℃-40℃

Share the product

Description

It is widely used in clinical, biology, genetic engineering, immunology and other fields, and is suitable for separation of solutions such as radioimmunity, water treatment, biology, chemistry, biopharmaceutical, blood product, etc.

Advantages

1. 5-inch high-definition touch screen, easy to operate and intuitive display;

2. Automatically identify 4different rotors to eliminate potential safety hazards caused by user misoperation;

3. It has 9 files of acceleration and10 files of deceleration level,which can effectively prevent secondary suspension and have a good centrifugal effect.

4. 15 groups of programs can be stored for users to use;

5. AC variable frequency motor, high speed control precision, imported environmental protection compressor;

6. There are various protections such as overspeed, door protection, imbalanceprotection, etc. to ensure the safety of human and machine;

7. Free switching of speed and RCF;

Specifications

Model CFGR-5BL
Max. Speed 4200rmp/min
Max. RCF 3500×g
Max. Capacity 4×500mL
Motor AC frequency conversion motor
Speed Accurancy ±30r/min
Time Setting Timed centrifugation:1min~99 min59sec

Continuous centrifugation: Hold

Temperature Setting -10℃~+40℃
Temperature Accuracy ±1.0℃
Power Supply AC220±22V 50/60Hz 16A
Noise < 60dB(A)
Dimensions(L×D×H) 720×743×410(mm)
Net Weight 110kg

Rotor

No. Max. speed rmp/m Max. RCF(xg) Rotor Type Capacity Dimension of Test Tube(mm)
NO.1 4000rmp/m 2810×g Level Rotor 4x2x100ml(It can be equipped with adapter) Φ37.5×123
4000rmp/m 2810×g 4x100ml(It can be equipped with adapter) Φ37.5×123
4000rmp/m 2810×g 4x2x50ml Φ29×107
4000rmp/m 2810×g 4x50ml Φ29×107
4000rmp/m 2810×g 4x8x15ml Φ17×118
4x6x15ml Φ17×118
4x4x15ml Φ17×118
NO.2 4200r/min 3500xg 4x250ml Φ62×110
NO.3 4000r/min 3040×g 4×500ml Φ80×137
NO.4 4000r/min 2000×g Microplate Rotor 2×2×96 well plate Microplate
