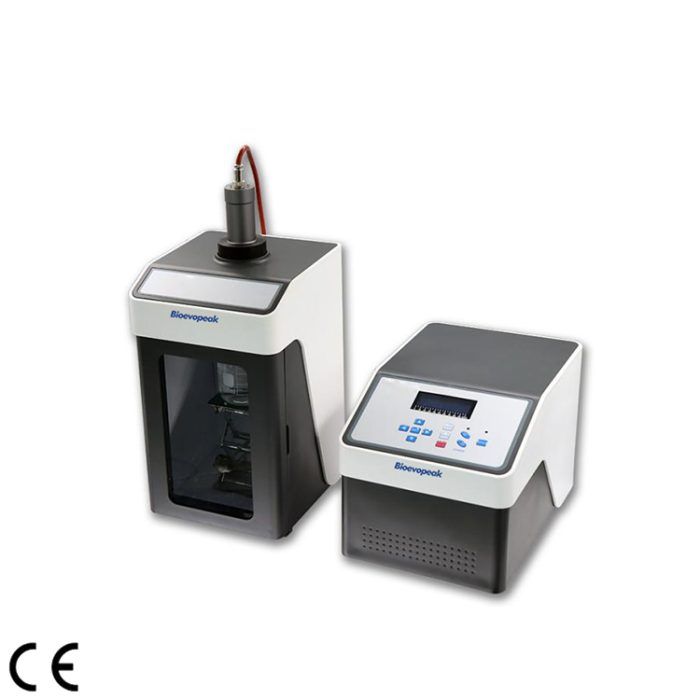

Ultrasonic Cell Disruptor, USCG-N Series

  1. Easy to operate, direct typing.
  2. Automatic frequency tracking and fault alarm.
  3. With over temperature protection device
  4. Automatic resonance point and power control

Share the product

Description

It is mainly applied in three aspects. First, traditional Chinese medicine extraction, cell, bacterial and viral tissue fragmentation. For example, the extraction of cell contents. Second, dispersion and homogeneity of material particles and emulsification of products. For example, the dispersion of nano materials (silicon dioxide, carbon dioxide, carbon nanotubes, graphene, etc.). Third, accelerate dissolution and chemical reaction. For example, it is used in chemical synthesis.

Advantages
Automatic resonance point and power control, without frequent manual energy adjustment.
The 99 hour process control timer controls the total working time: from 1 second to 99 hours, and pauses the current running task in real time.
The working time is displayed in cumulative status.
On / off pulse timer: ensure high-intensity processing of temperature sensitive samples, and the on and off cycles can be set from 1 second to 99 minutes.
Automatic amplitude compensation ensures that the probe amplitude does not change due to load changes during the ultrasonic process.
Sample overload and over temperature protection device.
Automatic frequency tracking and fault alarm.
Easy to operate, direct typing.

Specifications

Model USCG-150N USCG-250N USCG-300N USCG-450N USCG-600N USCG-900N USCG-1200N USCG-1800N
Electricity 220V/50Hz 80W 220V/50Hz 150W 220V/50Hz 300W 220V/50Hz 450W 220V/50Hz 600W 220V/50Hz 900W 220V/50Hz  1200W 220V/50Hz 1800W
Frequency 20KHz 20KHz 20KHz 20KHz 20KHz 20KHz 20KHz 20KHz
Power regulation 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment 0%–100%, 5% increment
Ultrasonic mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode Pulse mode / continuous mode
Timing function LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable LCD, 1s~99h adjustable
Piezoelectric frequency conversion energy converter CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics CV33, PZT lead zirconate titanate piezoelectric ceramics
Diameter 44mm 44mm 44mm 63mm 63mm 63mm 73mm 73mm
Length 152mm 152mm 152mm 154mm 154mm 154mm 160mm 160mm
Luffing lever material Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V Titanium alloy material, TI-6AL-4V
Luffing lever length 128mm 125mm 128mm 134mm 134mm 134mm 135mm 130mm
Processing capacity 0.5-50ml (need to select the corresponding horn) 2-100ml (need to select the corresponding horn) 5-200ml (need to select the corresponding horn) 10-300ml (need to select the corresponding horn) 20-500ml (need to select the corresponding horn) 20-1000ml (need to select the corresponding horn) 50-2000ml (need to select the corresponding horn) 100-3000ml (need to select the corresponding horn)
Standard probe Φ3mm Φ6mm Φ8mm Φ13mm Φ16mm Φ13mm Φ20mm Φ25mm
Host size 245*365*245mm 245*365*245mm 245*365*245mm 245*365*245mm 245*365*245mm 245*365*245mm 245*365*245mm 245*365*245mm
Soundproof box size 240*250*390mm 240*250*390mm 240*250*390mm 240*250*390mm 240*250*390mm 240*250*390mm 240*250*390mm 240*250*390mm
Host weight 8.5Kg 8.5Kg 8.5Kg 10.5Kg 10.5Kg 10.5Kg 13.5Kg 13.5Kg
Soundproof box weight 4.5Kg 4.5Kg 4.5Kg 4.5Kg 4.5Kg 4.5Kg 4.5Kg 4.5Kg
Lifting table Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm Stainless steel 100*100mm
