UV/VIS Spectrophotometer, Double Beam, SP-UV-D1.8, SP-UV-15, SP-UV-D5

  • With high performance grating
  • Long life and environmental deuterium lamp tungsten
  • With GLP self- check function

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

It is a commonly used analytical instrument, which can study the composition, structure and interaction of substances according to the absorption spectrum of substances. It has the characteristics of stable performance, flexible use, and easy maintenance.

Features:

1.480*272 Dots with 65 thousand true color LCD display;

2.Long life and environmental deuterium lamp tungsten;

3.Data output: Data can be exported to U disk;

4.Print port: Connect printer for printing;

5.High performance grating with High – precision optical system design;

6.Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade;

7.Pre-aligned design ensures the user can change lamps conveniently;

8.With GLP self- check function;

9.With SiO2 coating optical mirror, reducing the pollution from outside fully;

10.Optional PC Software to expand the application;

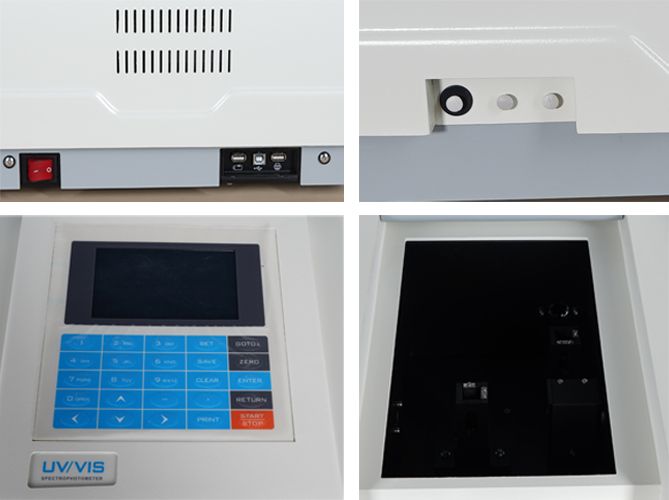

Product Details

Product Details

spectrophotometer-details

SPECIFICATIONS

SPECIFICATIONS

Model SP-UV-D1.8 SP-UV-15 SP-UV-D5
Optical System Double beam, grating 1200 lines/mm
Wavelength Range 190-1100nm
Spectrum Bandwidth 1.8nm 1nm 0.5,1,2,4,5nm
Wavelength Accuracy ±0.3nm
Wavelength Repeatability ≤0.2nm
Photometric Accuracy ±0.002A(0-0.5Abs),±0.004A(0.5-1.0Abs),±0.3%T(0-100%T)
Photometric Repeatability 0.001Abs(0-0.5Abs),0.002Abs(0.5-1.0Abs).≤0.2%T(0-100%T)
Stray Light ≤0.04T@360nm;220nm
Stability ±0.0003A/h@ 500nm
Baseline Flatness ±0.0005A
Sound Emission ±0.0002Abs
Display 65 thousand true color 7 inch TFT LCD(480 *800)
Photometric Mode T,A,C,E
Photometric Range 0-200%T.0.301-3.0A
Detector Silicon photodiode
Light Source Deuterium lamp,tungsten lamp
Input Membrane keypad
Output USB-A*2 print and data output USB-B connect PC
Dimensions (L×W×H) 740×570×440 mm
Weight 25kg
Compartment Optional: 8 Auto cell holder, solid sample holder, micro cell holder,10-100mm cell holder

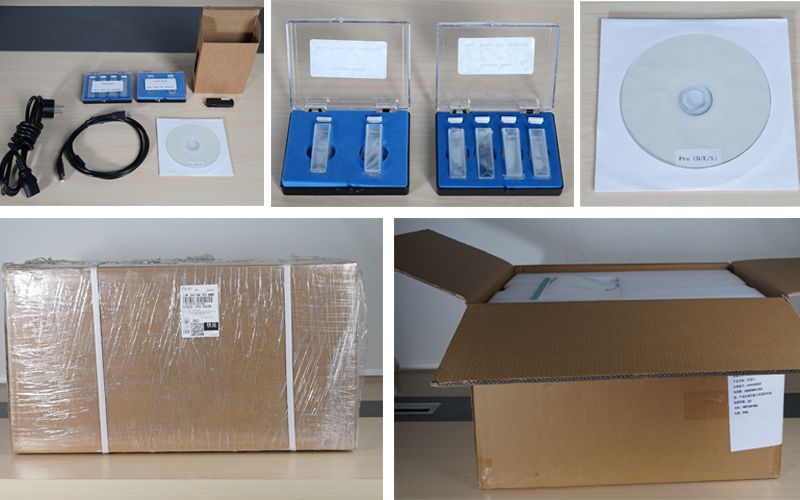

Accessories & Package

Accessories & Package

spectrophotometer-packaging
