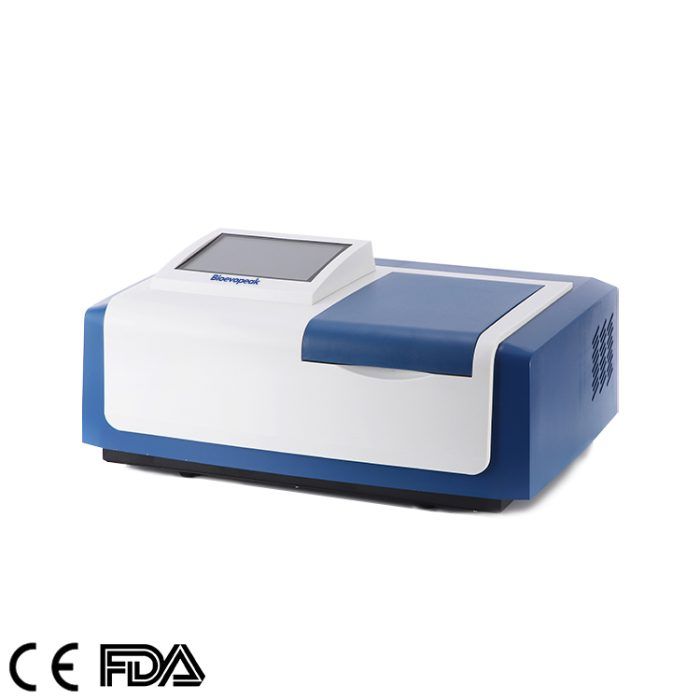

Double Beam UV-Vis Spectrophotometer SP-IUV7

Double Beam UV-Vis Spectrophotometer SP-IUV7 has outstanding test precision and very competitive prices, and With powerful functions, the equipment shows great performance in qualitative and quantitative testing

  1. Wavelength Range: 190-1100nm
  2. Wavelength Accuracy: ±0.5nm
  3. Automatic zero and full-scale adjustment
  4. Automatic wavelength settings

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

  • Automatic zero and full-scale adjustment
  • Automatic wavelength settings
  • UV WIN8 Spectrum Data Processing Software optional
  • Thermal plotter optional

Main Features of Double Beam UV-Vis Spectrophotometer SP-IUV7
1. Double beam optical system, and blazed holographic
2. G They have outstanding test precision and very competitive prices.
3. 8-inch color touch-screen, cutting-edge user interface, powerful functions, and easy operation.
4. With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:

  • Full-spectrum scanning
  • Linear regression
  • Detailed spectrum scanning
  • Concentration direct reading
  • Time-based kinetics determination
  • Peak/Valley detecting
  • GOTO λ
  • Multi-wavelength measurement

5. The equipment is designed with a sophisticated power protection system. With a high capacity of internal memory, it can store testing results, scanned images, regression equations, and correction data. Therefore, it follows a fast initialization when power is on.
6. The instrument can be connected with a dedicated printer, which can print testing results, or draw curves from spectral scanning, fixed wavelength time-based scanning, and linear regression.
7. With a USB COM port the device can be connected to a PC, which can not only enhance the performance in data testing and spectrum scanning but also expand the memory to save more testing results.

SPECIFICATIONS

SPECIFICATIONS

Model SP-IUV7
Photometry Double Beam
Monochromator Type Czerny-Turner
Focal Length 160mm
Grating 1200 lines/mm
Detector Silicon Photocell
Spectrum Bandwidth 1.8nm
Wavelength Setting 8-inch color touch-screen
Wavelength Range 190-1100nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Scanning Speed Fast-Medium-Slow
Stray Light ≤0.03%T (at 220nm NaI, 360nm NaNo2)
Photometric Range 0.0-200.0%T
-0.301-4.000A
0.000-9999C
Photometric Accuracy ±0.3%T
±0.002Abs (0-0.5A)
±0.004 Abs (0.5-1A)
Photometric Repeatability ≤0.15%T
0.001 Abs (0-0.5A)
0.002 Abs (0.5-1A)
Baseline ≤±0.002A (200-1090nm)
Noise 100%(T)noise≤0.15%(T), 0%(T)noise≤0.1%(T)
Drifting ≤0.0009 Abs/30min (250nm and 500nm after 2h warm up)
Power AC220V±22V 50Hz±1Hz, 200W
Packaging Size 710mm×590mm×505mm 0.21M3 36kg

Standard Accessories

Operation manual 1
Glass cuvette 1cm 4pcs
Quartz cuvette 1cm 2pcs
Power cable 1
Fuse 2pcs

Optional Accessories
UV WIN8 Spectrum data processing software
Thermal plotter

CERTIFICATE

CERTIFICATE

UV-Vis Spectrophotometer certificate
