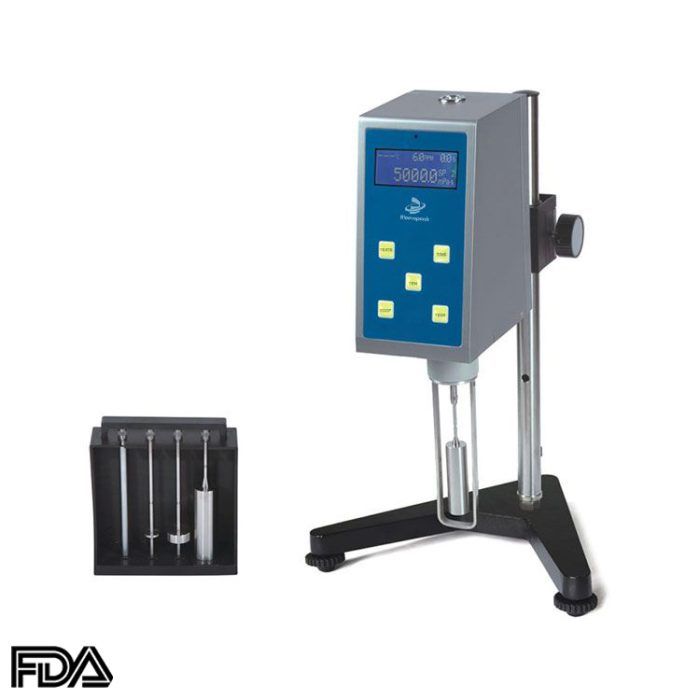

Digital Viscometer, VSC-N Series

  1. Measuring Range (mPa·s) : 20~2,000,000
  2. Rotating Speed: 4/8 adjustable speed, 0.3-60 RPM
  3. Number of spindle: 4

Share the product

Category:

Description

1. Using 16-bit microprocessor core control circuit
2. The blue screen LCD digital display directly displays the viscosity, speed, torque of the percentage meter, rotor number and the maximum viscosity value of the selected rotor that can be measured at the current speed.
3. VSC-N4 can set the measurement timing function, the button is eye-catching, the speed is stable, and the measurement is accurate

Specifications

Model VSC-N1 VSC-N4 VSC-N5 VSC-N8
Measuring Range(mPa·s) 20~100,000 20~2,000,000 20~100,000 20~2,000,000
Rotating Speed(RPM) Four adjustable speed: 6, 12, 30, 60 Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60 Four adjustable speed:6, 12, 30, 60 Eight adjustable speed:0.3, 0.6, 1.5, 3, 6, 12, 30, 60
Number of Spindles Spindles (Code L1, L2, L3, L4) are equipped with the product
Accuracy ±5% relative error ±1% full scale range in use
Return Capacity ±1% relative error ±0.5% full scale range in use
Power Power adapter (input: 100-240V,50/60Hz)
LCD screen display The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.

Apparatus to be equipped

digital viscosity meter 1 pce ascending and falling rack 1 set
standard spindle 1 set power adapter 1 pce
protective frame of spindle 1 pce spanner 1 pce
Seat and leveling feet 1 set RS232 standard output interface 1 pce

Options

  • Extreme low viscometer adapter (with one spindle L0)
  • Small sample adapter (with spindle 21, 27, 28 and 29 each)
  • Spindle L5
  • Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
  • RTD temperature probe
  • Specially used printer
