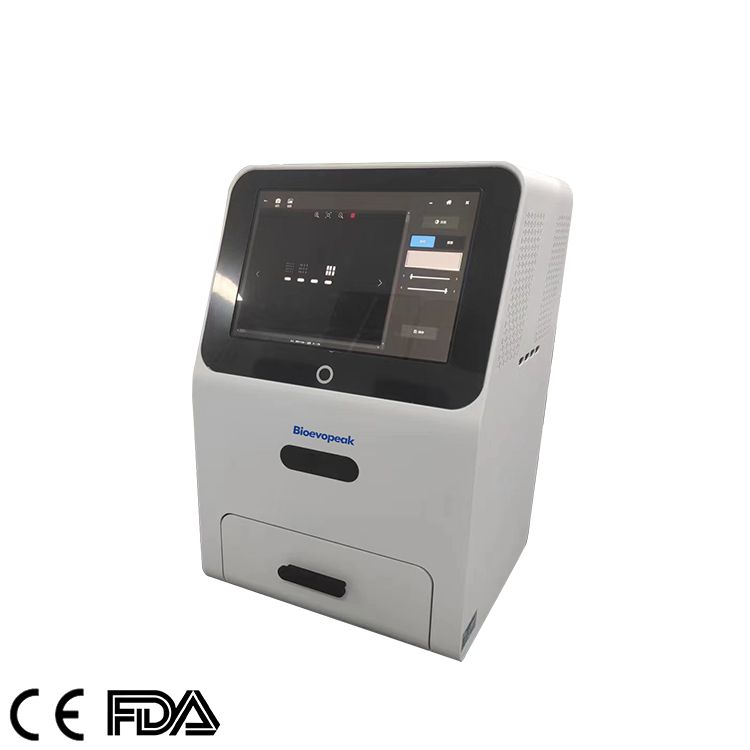

Integrated Gel Imaging System, GEP-GDX5T

  1. Pixel: 12 million pixels
  2. Exposure: 1ms-60min
  3. Photosensitive Efficiency: High QE: >79%
  4. Pixel Merge: 1×1 2×2 4×4

Share the product

Category:

Description

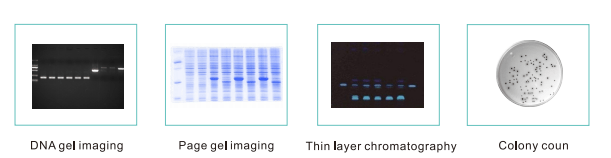

Application
Nucleic acid detection with various fluorescent dyes such as EB, SYBRGold, SYBR Green, SYBR Safe, Gel red, Gel Green, Texas Red, Fluorescein labeled DNA / RNA, etc.
Integrated Gel Imaging System
Features
Highly integrated and fully automatic, simple interface, main interface oriented display shooting button and time control, easy to operate, no manual tedious debugging.
New module design, with fast focusing high-resolution CCD camera.
Less noise, high sensitivity, and large resolution.
F1.0 high-throughput 20 million high-definition auto focusing lens, and multi-layer coating special filter.

Integrated Gel Imaging System           Integrated Gel Imaging System          Integrated Gel Imaging System

Camera lens
Adopt dark field camera module, FI .0 Super aperture 20 million Solutions Analyticity.
Touch system
12.5-inch touch HD display. One touch imaging, intelligent processing system.
Special filter
Multi-layer coated filter is adopted.
Passing of absolute stray light.

Integrated Gel Imaging System               Integrated Gel Imaging System              Integrated Gel Imaging System

UV sample table
Shadowless ultraviolet glass.
Tube background fluorescence.
Blue light sample table
Optional blue light sample table; Applicable fluorescent dye.
White light sample plate.

White light conversion sample plate.

Specifications

Model GEP-GDX5T
Pixel 12 million pixels
Exposure 1ms-60min
Photosensitive Efficiency High QE: >79%
Pixel Merge 1×1, 2×2, 4×4
Electric Lens F=1:1.4, 20 million auto focus lens
Dynamic Range ≥4.8 orders of magnitude
Image Density 16 bit (0-65535 colors)
Ultraviolet Transmission 302nm, optional transmission blue light
White Light Reflection LED reflection (cold light)
White Light Transmission White light conversion sample plate
Filter Lens 590nm standard configuration, others optional
Shooting Area Shooting area: 21x21cm
Timed Close 1~60 minutes
Display 12.5-inch touch HD display
Dimension 360*362*566mm
N.W./G.W. 19.5kg/22.3kg
Shipping Dimension 450*462*666mm
