-86 ℃ Freezer, ULF86 Series

  1. Capacity(L/cu.ft):338/11.93,408/14.40,588/20.76,728/25.70,838/29.59
  2. Temperature range(℃):-86~-40℃
  3. Advanced Cooling System:High performance compressor,cascade system,High cooling efficiency and fast cooling speed
  4. Stable and high precise temperature control:Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
  5. Convenient after-sales service:2 years warranty

Share the product

Description

Key Design Features
1.Microprocessor-controlled system designed for controlled rage of -86℃ to – 40℃ for cabinet space with 1℃ increment.
2.Settable high temperature and low temperature alarms.
3.Automatic clean-filter alarm and sensor error alert.
4.Adjustable storage shelf height.
5.Optional temperature recorder, storage racks and storage box.

Safety
1.Multifunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
2.Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.

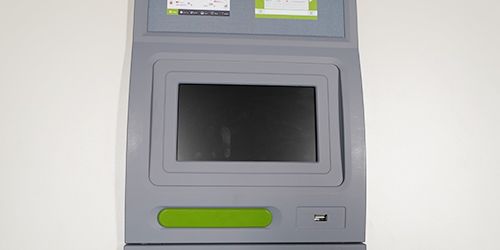

3.Door open feature standard and USB port for temperature date downloading standard on upright models.
4.Remote alarm contacts.

Installation and Application
1.Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition.
2.Suitable for 10℃ to 32℃ ambient temperature.

Filed Proven Reliability

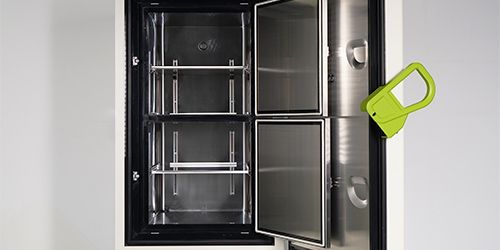

1.Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
2.Specialized control system design for a well-balanced operation of cascade refrigeration system.
3.Positive filed proven reliability record.

Energy Saving
1.Unique door seal design for the minimum loss of cold temperature during a door opening.
2.High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
3.HC Refrigerant with better efficient & less energy cost, good for environment.

Specifications

Model ULF86-340 ULF86-410 ULF86-590 ULF86-730 ULF86-840
Specifications Shelf/drawer QTY Stainless steel shelf/3 Stainless steel shelf/3 Stainless steel shelf/3 Stainless steel shelf/3 Stainless steel shelf/3
Cooling Direct cooling Direct cooling Direct cooling Direct cooling Direct cooling
Defrost Manual Manual Manual Manual Manual
Refrigerant HC HC HC HC HC
Power Consumption(kWh/24h) 12.8 11.6 12 15.4 15
Noisedb) 50 50 53 53 53
Ambient temperature(℃) 10~32℃ 10~32℃ 10~32℃ 10~32℃ 10~32℃
Temperature range(℃) -86~-40℃ -86~-40℃ -86~-40℃ -86~-40℃ -86~-40℃
Cooling system Compressor brand/QTY SECOP/2 SECOP/2 SECOP/2 SECOP/2 SECOP/2
Sensor PTC PTC PTC PTC PTC
Temperature controller Microprocessor Microprocessor Microprocessor Microprocessor Microprocessor
Display LCD display LCD display LCD display LCD display LCD display
Power Voltage/frequencyV/Hz) 220/50Hz 220/50Hz 220/50Hz 220/50Hz 220/50Hz
Power(W) 870W 845W 815W 935W 890W
Current(A) 6.75A 7A 7A 7A 7A
Material Inside material Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Outside material Color sprayed steel Color sprayed steel Color sprayed steel Color sprayed steel Color sprayed steel
Insulation PURF PURF PURF PURF PURF
Size Capacity(L/cu.ft) 338/11.93 408/14.40 588/20.76 728/25.70 838/29.59
NT./GT.(kg) 250/305 292/317 307/368 360/401.5 397/430
Exterior size(W*D*H)(mm) 880*980*1940 900*940*1940 880*1080*2000 1260*890*2010 1190*1045*2010
Interior size(W*D*H)(mm) 488*607*1140 606*575*1180 606*738*1310 963*558*1350 894×718×1310
Package size(W*D*H)(mm) 940*1070*2130 955*960*2100 975*1140*2200 1320*970*2190 1270*1105*2220
CBM 2.14 1.93 2.45 2.80 3.12
20GP/40GP/40HQ 12/24/24 12/24/24 12/24/ 24 8/18/18 8/18/18
Frozen Racks Racks 12(4X4) 16(5X4,4X4) 16(5X5) 18(5×4)+6(6×4) 24(5X5)
Boxes (2 Inches) 192 288 400 504 600
Samples(2ml) 19200 28800 40000 50400 60000
Alarm High/low temperature Y Y Y Y Y
Power failure Y Y Y Y Y
Abnormal voltage Y Y Y Y Y
Sensor error Y Y Y Y Y
Filter screen check Y Y Y Y Y
Thermostat failure Y Y Y Y Y
Low battery Y Y Y Y Y
Condenser clean Y Y Y Y Y
High ambient temperature Y Y Y Y Y
Door ajar Y Y Y Y Y
Power failure backup system(alarm) 72h 72h 72h 72h
Accessories Castor Y Y Y Y Y
Inside door 2 2 2 2 2
Test hole QTY/diameter 2/25MM 1/25MM 1/25MM 1/25MM 1/25MM
USB port Y Y Y Y Y
Chart recorder Optional Optional Optional Optional Optional
Data logger Optional Optional Optional Optional Optional
Remote alarm port Y Y Y Y Y
Optional CO2 back up system Optional Optional Optional Optional Optional
LN2 back up system Optional Optional Optional Optional Optional
