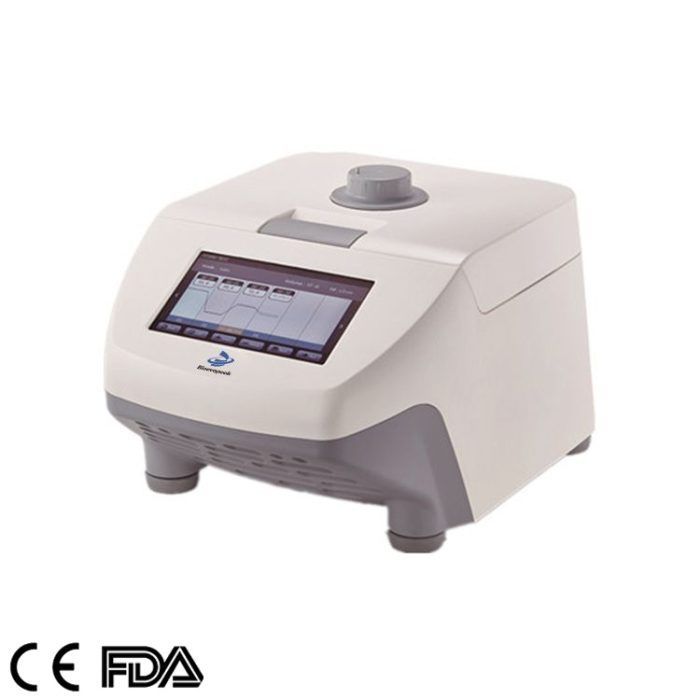

PCR Gradient Thermo Cyclers, PCRTC-G

  • Gradient type
  • Sample Capacity: 96 well plate, 96X0.2mL PCR tube
  • Max. Heating/Cooling rate:5℃/Sec
  • Temperature uniformity≤±0.3℃
  • 7 inch Large color touch panel screen
  •  High performance DSP and temperature control
  • Large user program storage

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

  • Reliable  heating/cooling  elements  and  precise temperature control
  • Unique  design  of  block  ensures  the temperature uniformity and repeatable results
  • 7 inch Large color touch panel screen for easy programming with user friendly software
  • High performance DSP and temperature control
  • Fast heating and cooling rate
  • Large user program storage
PCRTC-G screen 01
  • 7 inch Large color touch panel screen
  • It is for easy programming with user friendly software
  • Long lasting peltier, precise temperature control by zone
PCRTC-G tube
  • Compatible with common tubes of different heights
  • Eight rows of tubes and 96-well plates

SPECIFICATIONS

SPECIFICATIONS

Specifications PCRTC-G
Sample Capacity 96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate
Heating Temperature Range 4-105℃
Lid Temperature Range 30-110℃
Temperature Display Accuracy ±0.1℃
Temperature Control Accuracy [at 55℃] ±0.3℃
Temperature uniformity[at 55℃] <0.3℃
Max. Heating/Cooling Rate 5℃/Sec
Gradient Temperature Setting Range 30-99℃
Gradient Range 1-42℃
Adapter block material aluminum
Display 7” LCD 800×480
Input Touch panel
User defined file system Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder
Power off protection Yes
Power Supply 100-120V/200-240V,50/60Hz
Dimension [D×W×H] 590x420x430 mm
Gross/Net 13kg / 12kg
