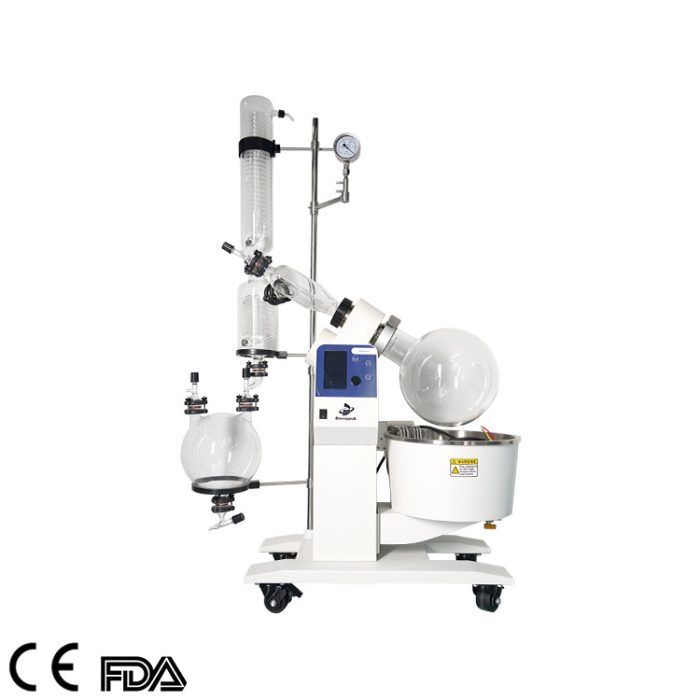

Rotary Evaporator, Industrial Sacle, REV200-P

  1. Evaporating Flask Volume: 20L
  2. Evaporation capacity (H₂O):4.0L/H
  3. Motor Type: Brushless motor
  4. Lift Mechanism: Automatic
  5. Rotation Speed: 10~150 RPM
  6. Temperature Range: RT ~180℃
  7. LCD Display

Share the product

Category:

Description

  1. Large LCD digital display with heatingtemperature, rotation speed, clockwise and Anti-clockwise, time information.
  2. One-click automatic motor lifting (stroke180mm), smooth and silent.
  3. Water/oil heating bath with widetemperature range from room temp. to 180°C.
  4. Speed range from 10 to 150rpm, andinterval operation in clockwise and anticlockwise directions for drying process.
  5. Three-layer high-efficiency condensing tubewith large condensation area and strong evaporation capacity, ensuring efficient sample recovery.
  6. Patented connector for evaporating flask easy & quick installation.
  7. PTFE double sealing ring with excellentsealing performance.
  8. A switching valve for continuous collectionwithout compromising the system vacuum and solvent distillation.

Specifications

Model REV200-P
Performance Temperature range Room temp. -180℃ (both water and oil)
Control accuracy Water: ±1℃ Oil: ±3℃
Rotation speed 10rpm~150rpm
Evaporation capacity Max. 4.0L/h (water vapor volume)
Ultimate vacuum < 2.6 hPa
function Temperature control method Micro processer PID control
Display LCD (temperature/speed/clockwise and Anti-clockwise/time)
Stroke displacement Automatic 180mm
Safely features Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
constitute Sample flask Round flask 20L
Receiving flask Round flask 10L with drain value
Condenser Two-section vertical triple serpentine condenser, cooling surface 1.2m2
specifications Heating bath size Φ450mm×240mm
Takeover caliber Cooling/suction nozzle outer diameter 16mm,
vacuum pump nozzle outer diameter 16mm
Dimension (D×W×H) 1160mm×600mm×1860mm
Power supply 220V/4600W/50Hz/60Hz
